| BRAND | Honsberg |
| Product | FF-040GR015S (942530) |
| Description | Flow Switch |
| Internal code | IMP1185696 |
| Weight | 0.6 |
| Custom code | 85365080 |

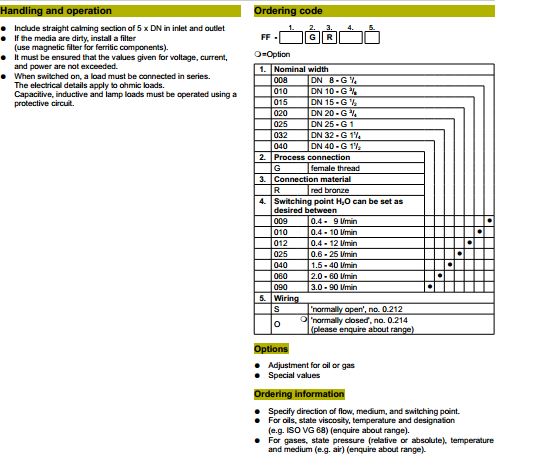

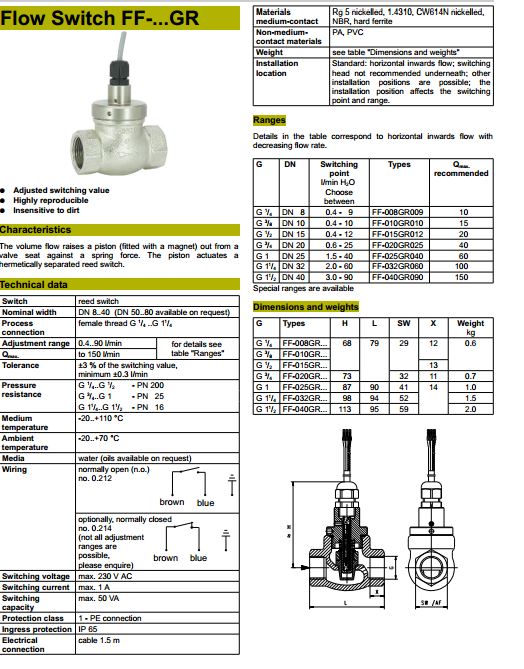

| Technical specification | <p>(FF-040.GR.015T.IP65/0212) </p><p>Nominal diameter: DN 40 </p><p>Connection: Female thread G 1½ </p><p>Housing: gunmetal nickel-plated </p><p>Pressure resistance: PN 16 </p><p>Internal parts: POM </p><p>Seal: NBR </p><p>Average temperature: -20... +90 °C </p><p>Environmental temperature: -20... +70 °C </p><p>Adjustment range: Volumetric flask SC </p><p>Switching point: 1.5 l/min H2O decreasing off, 1.7 l/min increasing On Switching head: Nickel-plated brass </p><p>Electrical connection: Pg with 1.8 m cable </p><p>Electrical contact: Reed switch </p><p>Max. contact load: 230 V AC 1 A 50 VA </p><p>Connection diagram: normally-open contact, connection diagram no. 0.212 </p><p>Protection type: IP65 </p><p>Flow direction: Horizontal from the left </p><p>code 01.0001.1275</p> |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Honsberg - FF-040GR015S (942530) Flow Switch number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
