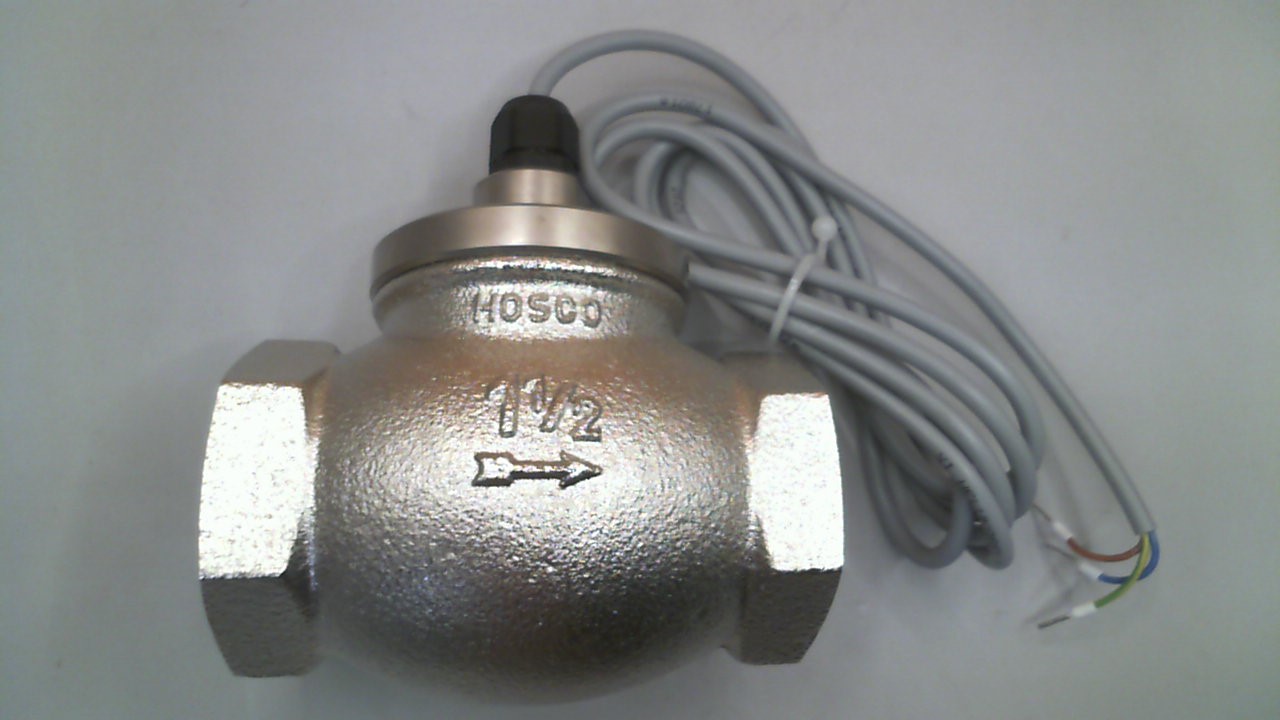

| BRAND | Honsberg |
| Product | FF-040GR025S |
| Description | Flow Switch |
| Internal code | IMP5140156 |
| Weight | 2 |
| Custom code | 90261089 |
| Technical specification | <p>Nominal diameter: DN 40<br>Connection: Female thread G 1½<br>Housing: gunmetal nickel-plated<br>Pressure resistance: PN 16, max. test pressure 25 bar<br>Internal parts: POM<br>Seal: NBR<br>Average temperature: -20... +90 °C<br>Ambient temperature: -20... +70 °C<br>Adjustment range: Volumetric flask HIGH<br>Switching point: 2... 2.5 l/min H2O increasing on<br>Switching head: Nickel-plated brass<br>Electrical connection: Pg with 1.8 m cable<br>Electrical contact: Reed switch<br>Max. contact load: 230 V AC 1 A 50 VA<br>Connection diagram: normally-open contact, connection diagram<br>no. 0.212<br>Protection type: IP65<br>Flow direction: Horizontal from the left<br>Version: ALTO (SCANIO)<br></p> |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Honsberg - FF-040GR025S Flow Switch number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
