| BRAND | Thermokon |

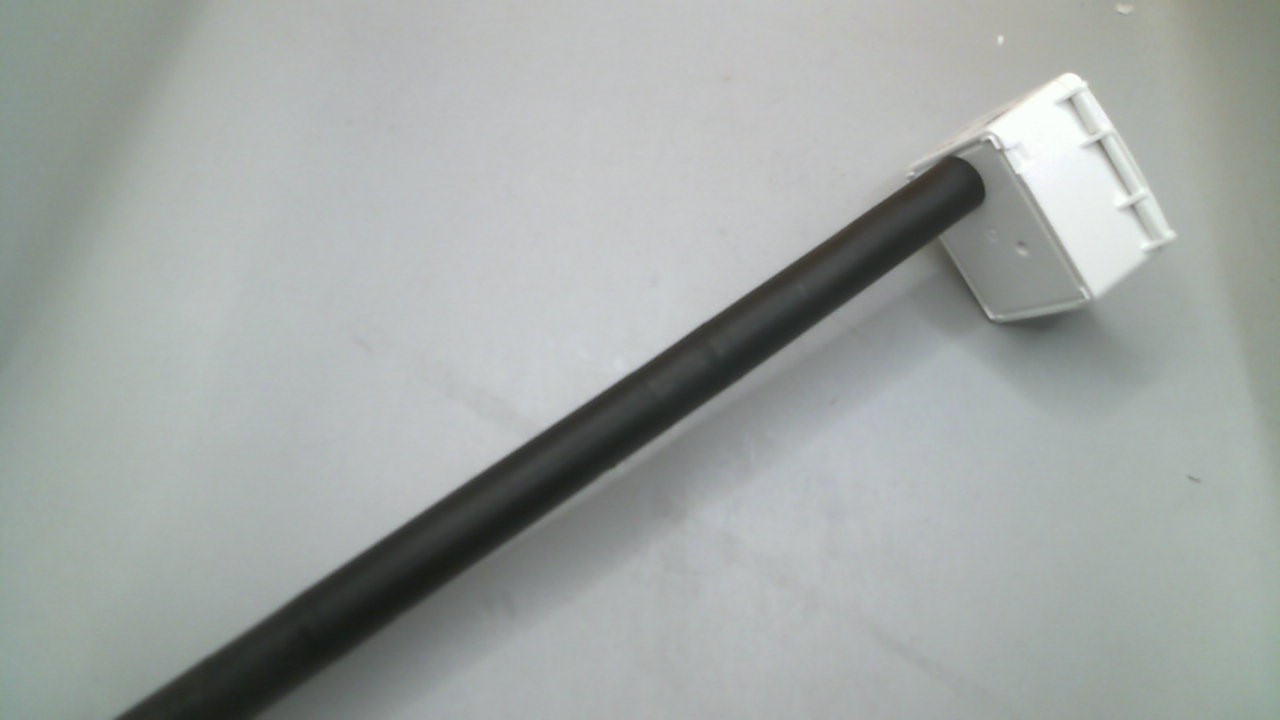

| Product | FTK+ 400 VV / 626361 |
| Internal code | IMP3813734 |
| Weight | 0.3 |
| Custom code | 90258040 |
| Technical specification | Channel sensor temperature, humidity — 0.. 5 V, 0.. 10 V Output voltage: 2x 0.. 10 V or 0.. 5 V, adjustable via jumper, min. load 10 kO Operating temperature range: -20.. +70 °C, temperature accuracy: ±0.3 K (typical at 21 °C) in Standard measuring range, potentiometer for offset adjustment Humidity measuring range: 0..100% rH without condensation, 0.. 85 kJ/kg enthalpy, 0.. 50 | 0.. 80 g/m³ absolute humidity, 0.. +50 | -20.. +80 °C dew point, adjustable on the transmitter Humidity accuracy: ± 2% between 10..90% rH (typical at 21 °C), potentiometer for offset adjustment Power supply: 15.. 24 V = (± 10%) SELV, 24 V ~ (± 10%) SELV Connection: removable Flextherm M20 cable entry for cables with Ø=4.5.. 9 mm, removable plug-in terminal, max. 2.5 mm² Medium wetted material: sensor tube, PA6, with filter stainless steel wire mesh, black, Ø=19.5 mm, Installation length: 400 mm, housing: USE-S, impact-resistant and shatter-proof housing with hinged cover, PC, Colour: pure white, protection class: IP65 Scope of delivery: incl. mounting flange, incl. mounting kit (screws and accessories) Notes: flow rate max. 12 m/s |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Thermokon - FTK+ 400 VV / 626361 number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
