| BRAND | ABO Valve |

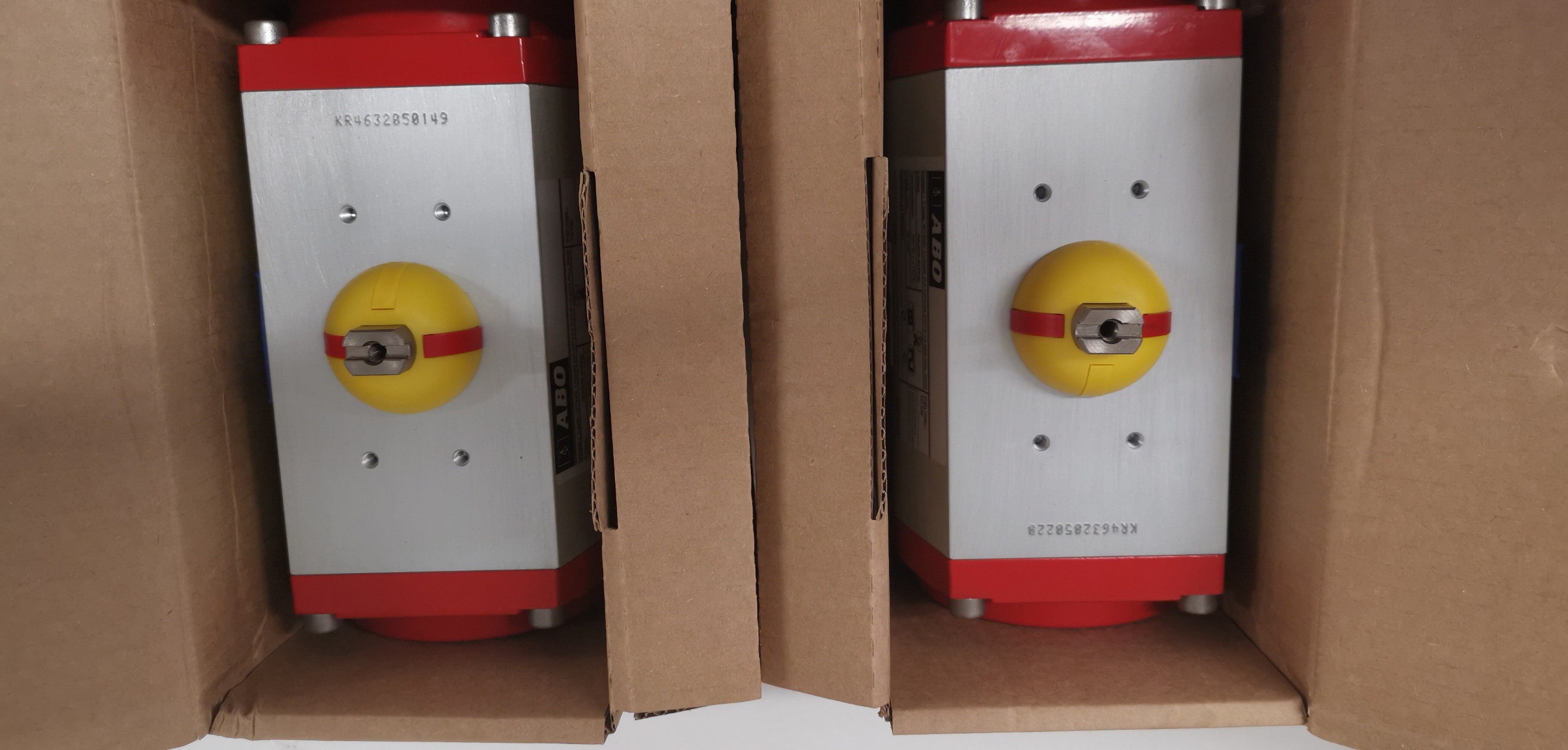

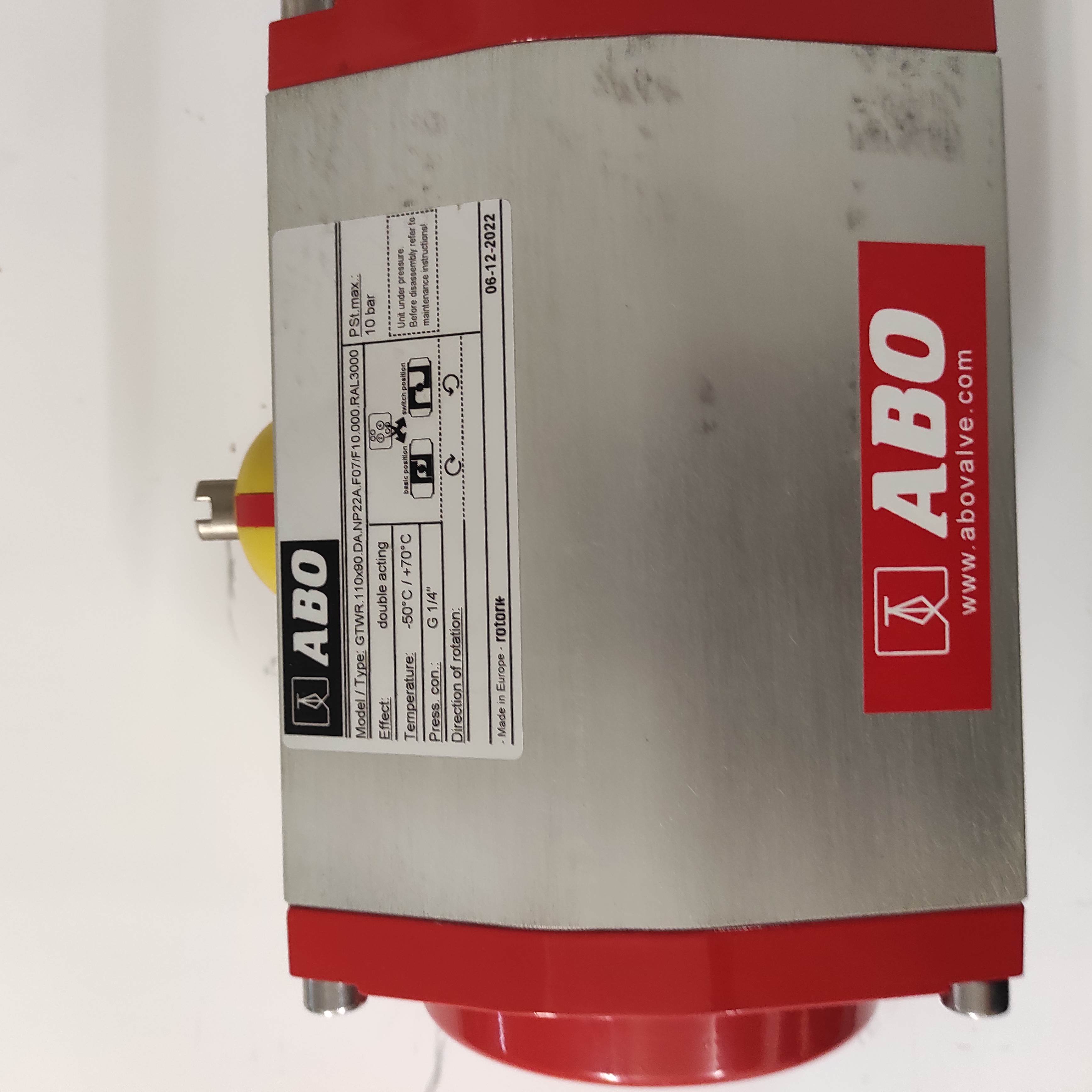

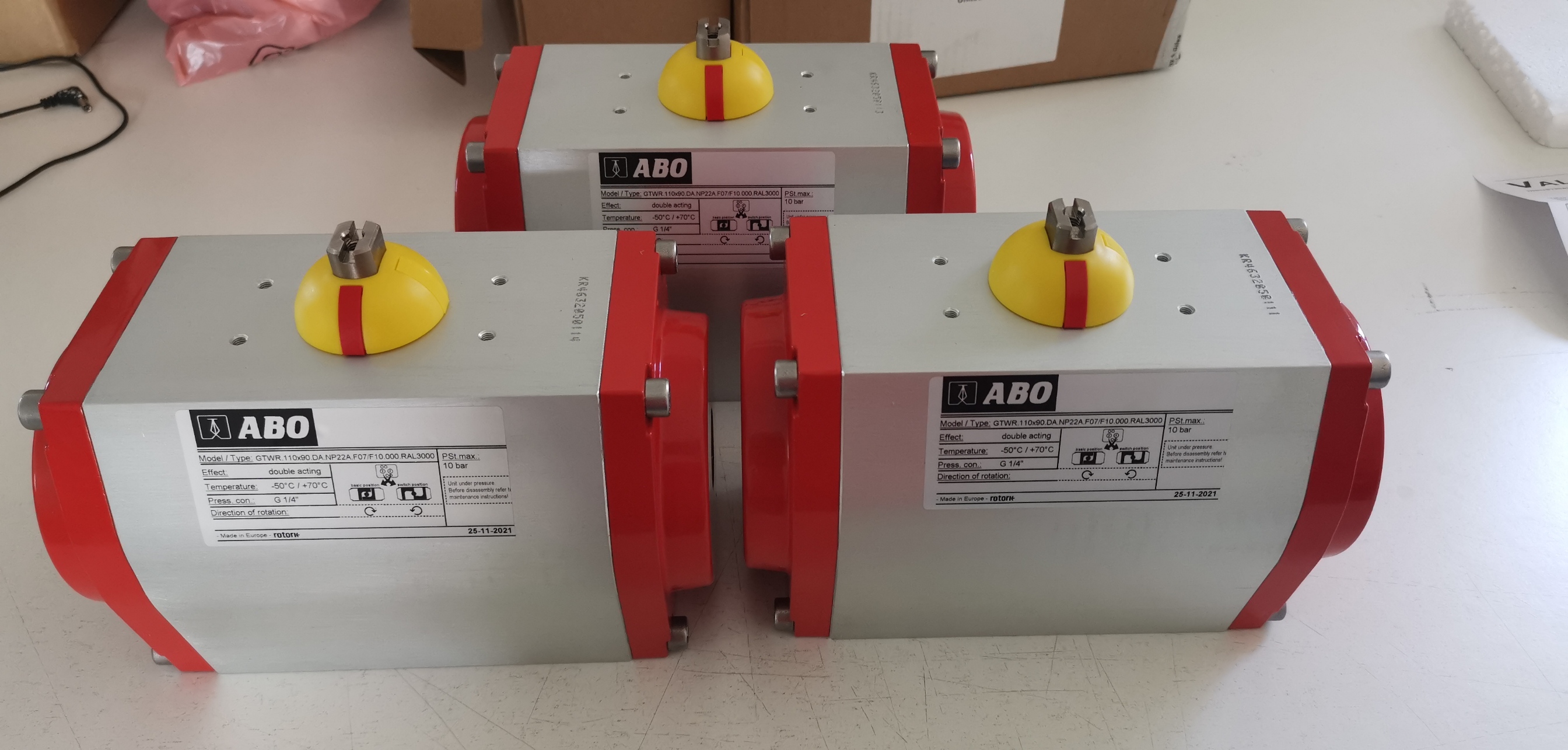

| Product | GTW 110x90 |
| Description | drive |
| Internal code | IMP4540332 |
| Weight | 5 |
| Technical specification | Flange connection ISO 5211, NAMUR VDIVDE 3845 Material of the body Anodized aluminium ASTM 6063, UNI 10681 Material of the end caps Aluminium UNI EN1706, EN AC-46100 epoxy coated Material of the pistons Aluminium UNIEN1706 Material of the pinion Nickel plated steel AISI SAE 11137 - ASTM B 656 / Stainless steel Stroke adjustment 0° position from -25° 10 +5° 90° position from -5° 10 +5° |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for ABO Valve - GTW 110x90 drive number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
