| BRAND | Dwyer |
| Product | HT-2300-400mm |
| Description | Pressure Manometer. |
| Internal code | IMP5024730 |
| Weight | 0.51 |

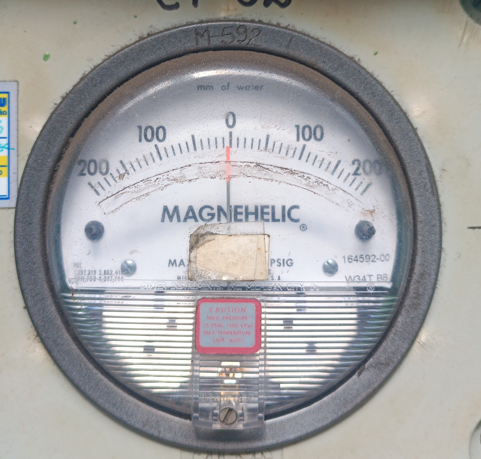

| Technical specification | Differential pressure gauge with central zero. Application: Air and compatible, non-combustible gases. Measuring range 200 - 0 - 200 mmH2O. Working pressure -20” Hg to 15 psig. Process connection 1⁄8” NPT-F high and low in duplicate. Dial diameter 105mm with bezel 120.65 mm. Working temperature -7 to 60°C. Accuracy class ± 2% full scale up to 21.1oC. Sensor element - silicone rubber diaphragm. Construction - die-cast aluminum housing. Heat-hammered dark gray finish. Transparent plastic display. Weight 510 grams. Supplied with two plugs with 1/8” NPT thread, three adapters with screws for two connectors with 1/8” NPT-M thread, hose nozzle, user manual. Code 164592-00 - Model HT-2300-400mm - Magnehelic Series. Manufacturer Dwyer Instruments Inc., ISO 9001 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Dwyer - HT-2300-400mm Pressure Manometer. number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
