| BRAND | Ascon |

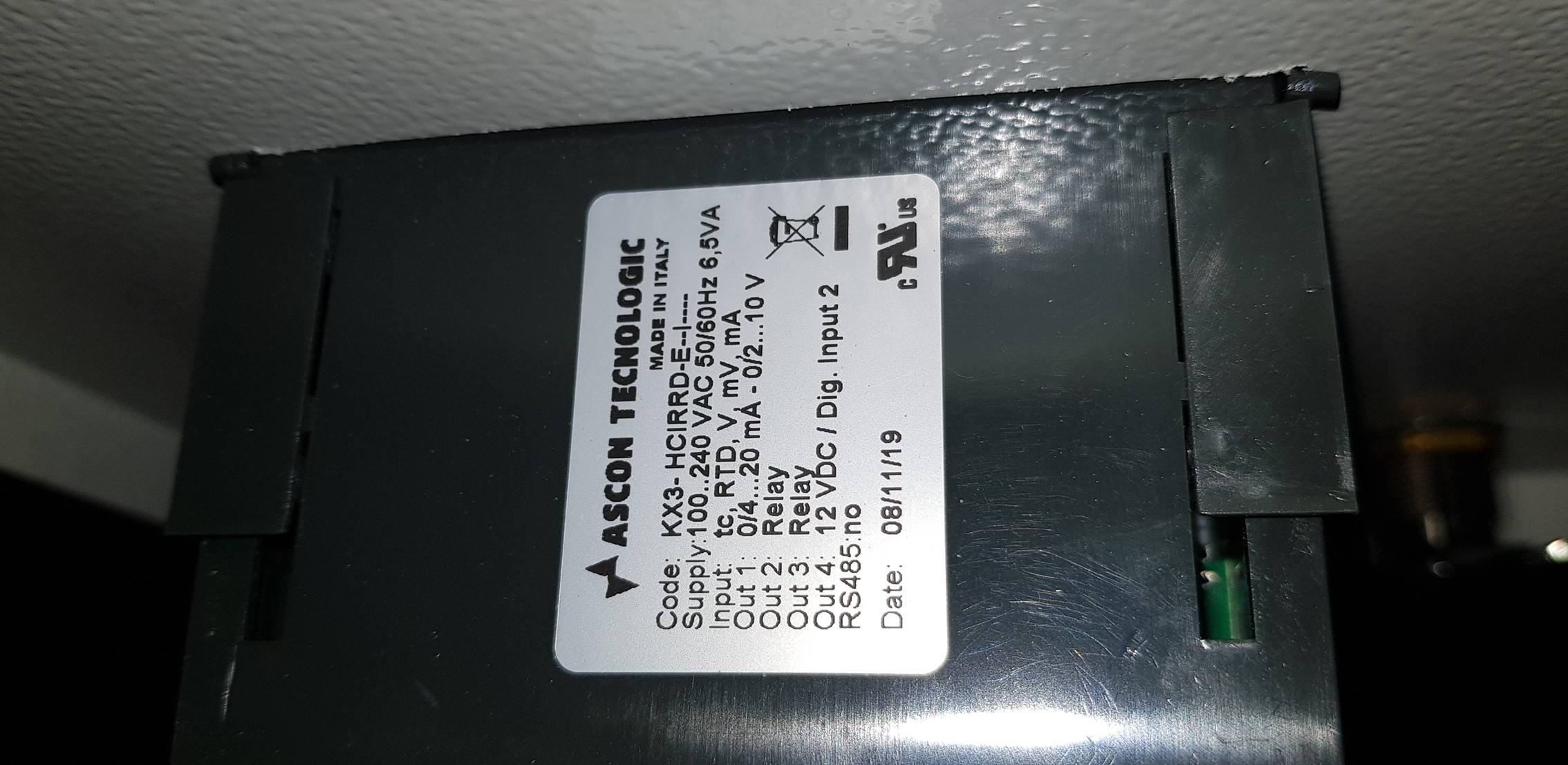

| Product | KX3-HCIRRD-E |
| Description | Controller series KX3, programmer with independent timer |
| Internal code | IMP3793061 |
| Weight | 1 |
| Technical specification | Dimensions 48 x 96 mm (1/8 DIN), depth 76 mm Front protection degree IP54, with gasket Double LED display: - Main Display: 4 digit, 3 dynamic colour red, green and amber h 15.5 mm - Secondary Display: 4 digit, green h 10 mm + 21 segments Bargraph Model: KX3-ABCDEFGHIJ A-N°: G-N°: (A) Model -: Controller T: Controller + Timer P: Controller + Timer + Programmer (B) Display -: 3 dynamic colours (C) Power supply L: 24 VAC/DC H: 100… 240 VAC (D) Input C: TC, RTD, mA, V, mV E: TC, NTC, PTC, mA, V, mV (E) OUT 1 R: Relay (SPDT) O: VDCxSSR I: 0/4… 20 mA isolated, 0/2… 10 V (F) OUT 2 R: Relay SPST 2A O: VDCxSSR M: Relay for Motorvalve driving -: Not available (G) OUT 3 R: Relay SPST O: VDCxSSR M: Relay for Motorvalve driving For Valve Motor Drive output, both OUT2 and OUT3 have to be present and ordered -: Not available (H) IN/OUT4 D: Digital Input or Digital Output or Tx supply (I) Serial communiction S: RS485 -: TTL Modubus (J) Terminals E: Plug-in type N: Plug-in type (fix part only) M: Spring type -: Fix screw type |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Ascon - KX3-HCIRRD-E Controller series KX3, programmer with independent timer number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
