| BRAND | Yuken |

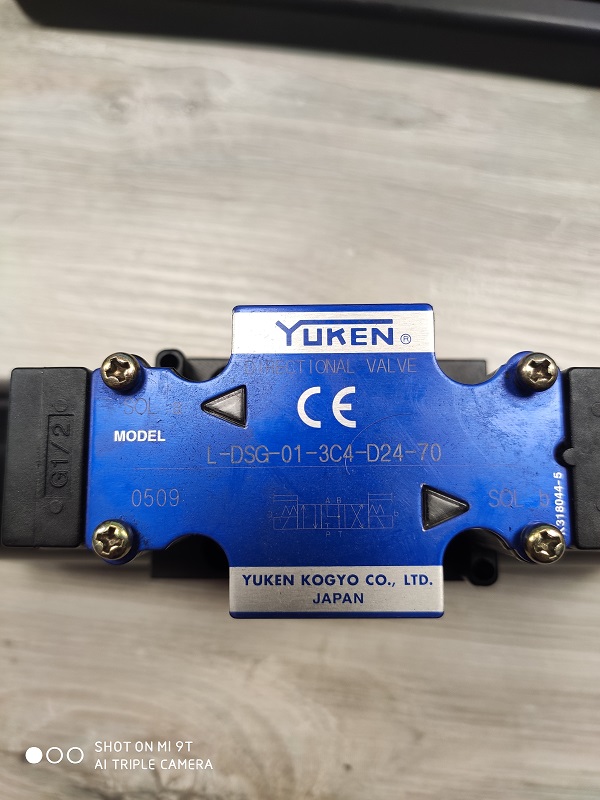

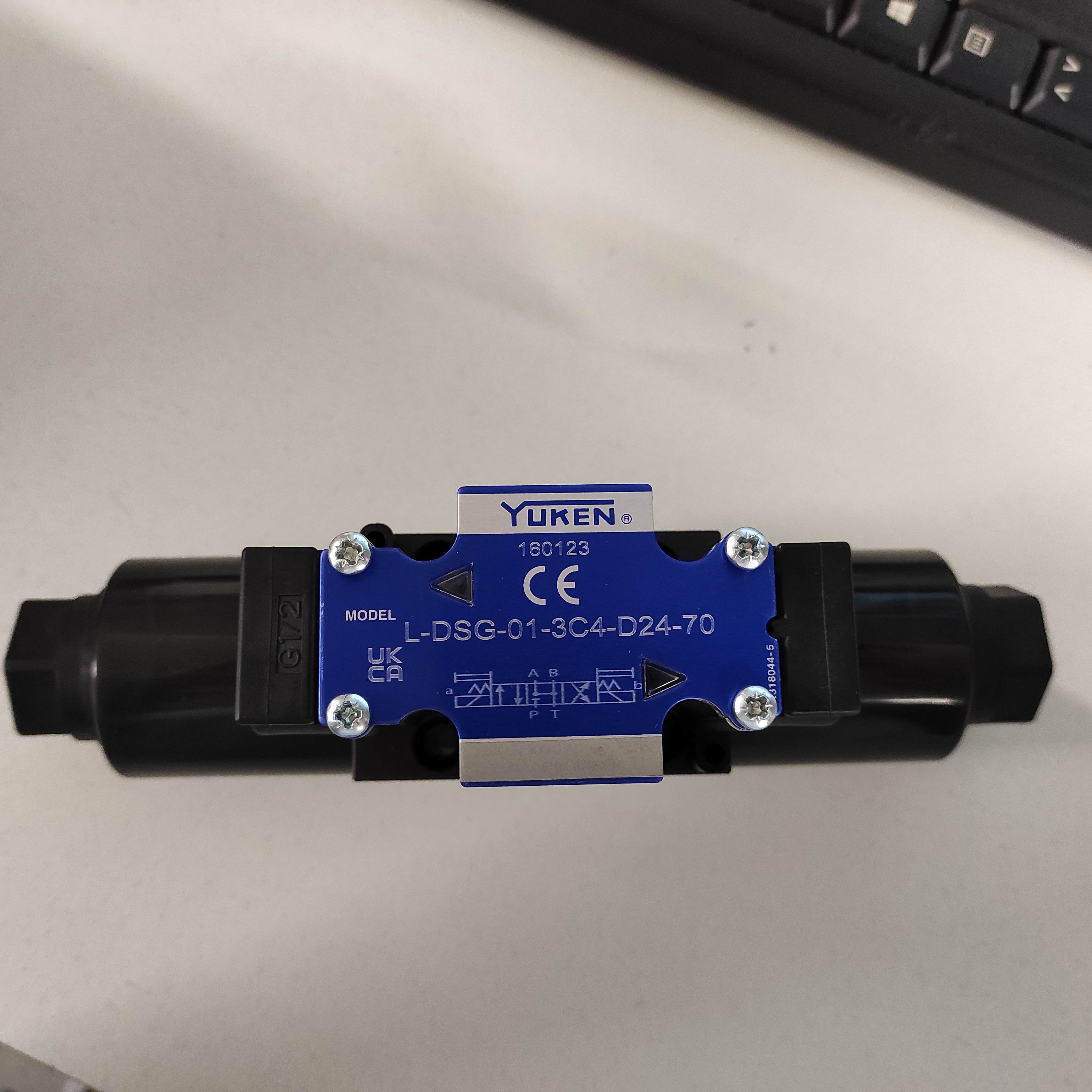

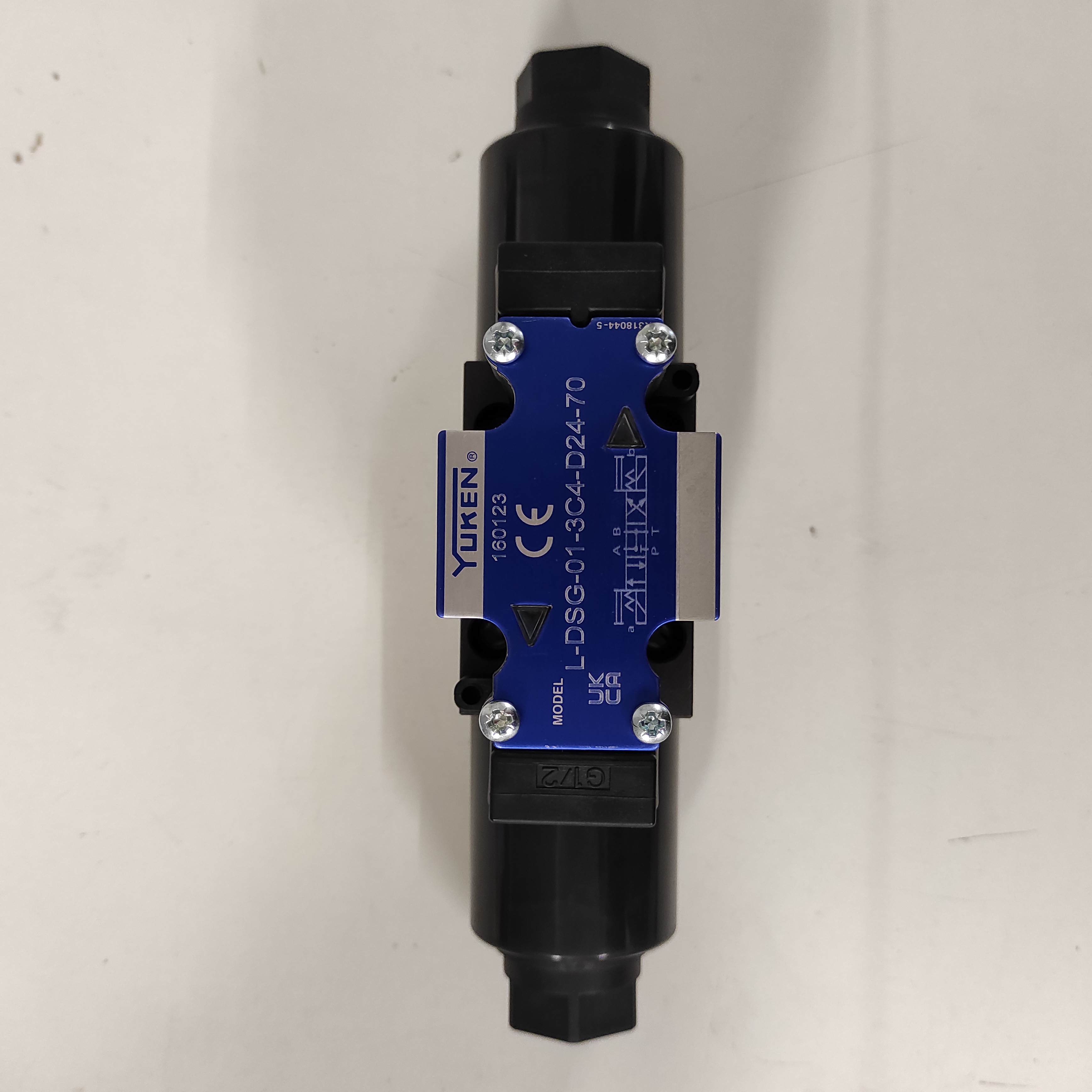

| Product | L-DSG-01-3C4-D24-70 |
| Description | Directional valve |
| Internal code | IMP4041201 |
| Weight | 2 |
| Custom code | 84812010 |
| Technical specification | Z260Y-00219-99999 4/3 ways A+B+T combination - 24VDC with terminal box 4/3 way valve NG6 - CETOP 03 Default position: A+B+T connected and P blocked Switch position a: P to B and A to T Switch position b: P to A and B to T Magnets on sides A+B partly positive shift overlap Pmax: connections P, A, B = 350 bar - connection T = 210 bar associated mounting screws: M5x45 Magnetic coils with built-in surge protection O-rings for sealing surface: 4 pieces 9.25mm x 1.78mm - NBR 90Sh |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Yuken - L-DSG-01-3C4-D24-70 Directional valve number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
IMG_20201013_124229.jpg | |
|
|
IMG_20230216_100228.jpg | |
|
|
IMG_20230222_081751.jpg |
