| BRAND | Teledyne |
| Product | LA-GM-02K08A-00-R |
| Description | camera |
| Internal code | IMP5058439 |
| Weight | 0.28 |
| Custom code | 85258900 |

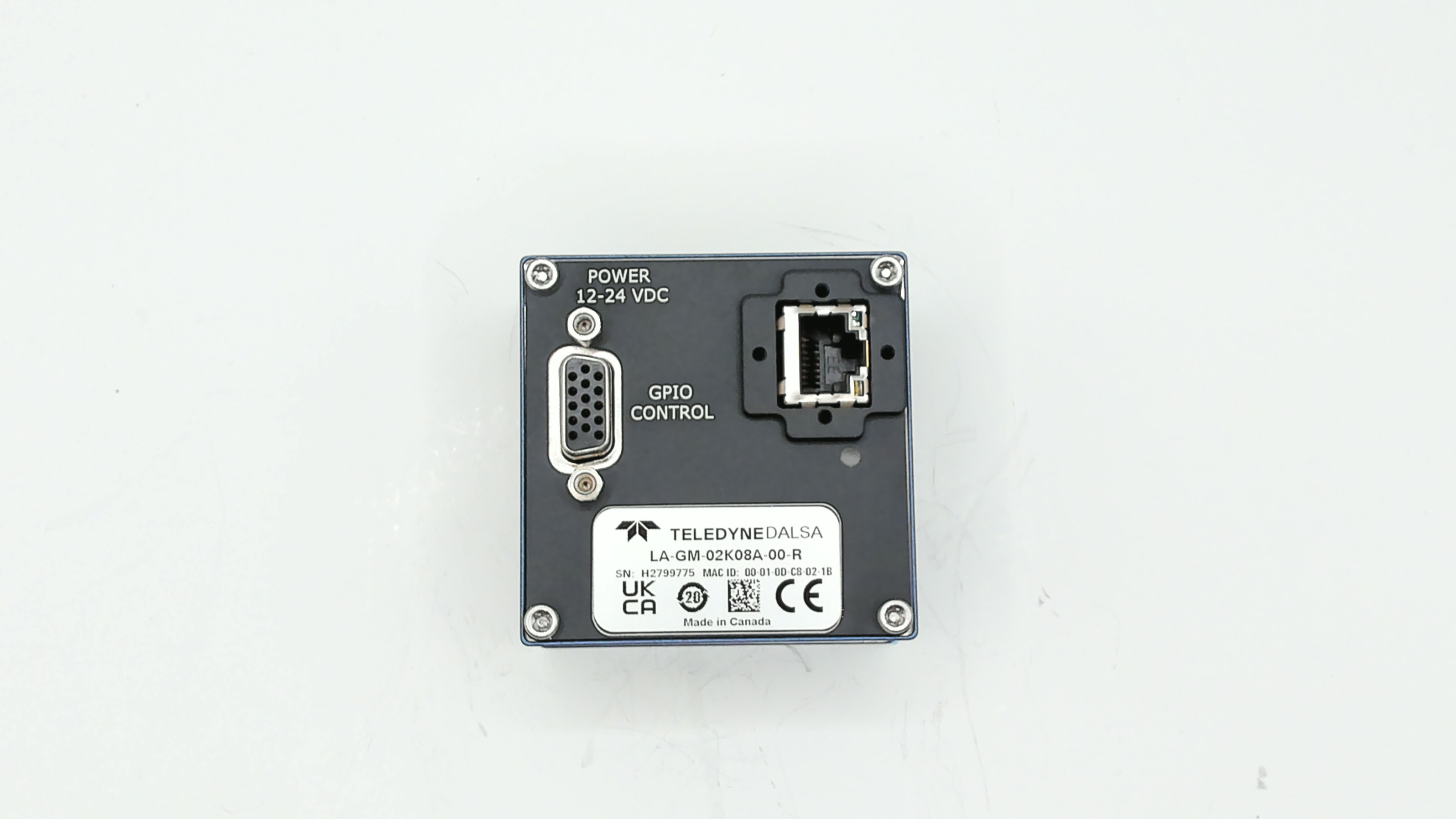

| Technical specification | DALSA LINEA LA-GM-02K08A Compact line scan camera, monochrome with Gigabit Ethernet * Single line CMOS sensor with 2048 pixels, 7.04 μm pixel size * Sensor length 14.4 mm * Maximum line rate 52 kHz (up to 80 kHz with TurboDrive) * Special features: HDR, sequence, burst mode, multiple GPIO (timer/counter), flat field correction with up to 4 ROI, TurboDrive for accelerated data transfer via Ethernet many times faster than standard GigE vision * Camera configuration with graphical user interface as well as from the application with GenICam interface * Extended temperature range: 0°C to 65°C * Sensitivity: 320 DN/ (nJ/cm²) @ 1x gain, 12 bit * Dynamic range: > 60 dB * 8 or 12 bit digital output via GigE Vision standard * Power and power consumption: 12 to 24 VDC, 4-6 W * Connector: RJ-45, 15-pin DSUB * Dimensions: 62 x 62 x 47 (W x H x D in mm) * Weight: < 280g * Lens mount: M42 x 1 * C/F mount lens adapter and heatsink please separate order! * Includes a free license for CVB CameraSuite MultiOS, Manufacturer SDK and user GUI for configuring camera * CVB drivers available |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Teledyne - LA-GM-02K08A-00-R camera number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
