| BRAND | Thermoreg |
| Product | M40TS7A-130-38 |
| Description | Automatic Temperature Control Valve fitted with Manual Override |
| Internal code | IMP4894933 |
| Weight | 12 |
| Technical specification | Nominal Size: 1 ½” Material: Valve body Steel, internal parts Bronze & Stainless Steel Seal Material: Nitrile Rubber Port Connections: Flanges according to ANSI300 RF (63 AARH Standard Flange Surface) Thermostatic Elements: 2040A-130-89 Manual Override (49°C – 60°C) Set Point: 54°C (+/- 1-2°C higher for oil applications) Max. Cont. Temp: 93.5°C Max. Intermittent Temp: 104°C Working Pressure: 22 bar Maximum Painting: Factory Standard BS381C-105 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Thermoreg - M40TS7A-130-38 Automatic Temperature Control Valve fitted with Manual Override number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

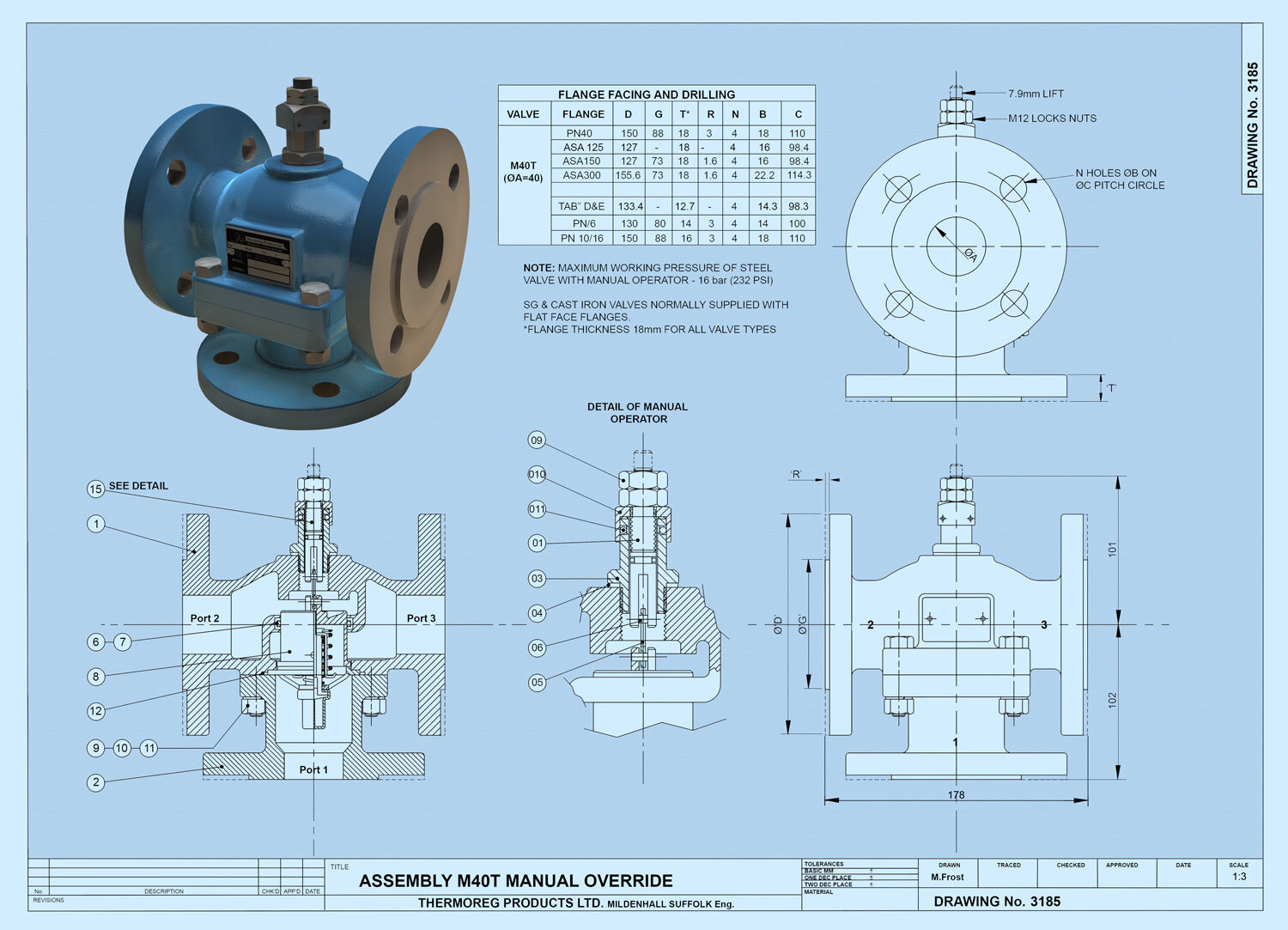

M40T_Override_Dimensions.jpg |
