| BRAND | Bcs |
| Product | M748DP |
| Description | Microprocessor-based digital indicator |
| Internal code | IMP4308293 |
| Weight | 4.5 |
| Custom code | 90318080 |
| Technical specification | - two independent analog inputs; - range: programmable through keyboard; - 7-segments LED display, 14 mms high, red; - stabilized power supply unit, 5 V DC, for the load cells; - zeroing and calibration through keyboard; - four programmable alarms, with SPDT relay, 2 A; - Profibus DP output; - power supply: 230 V – 50/60 Hz; - metal box, IP65 protection, dimensions 300x200x120 mm. |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Bcs - M748DP Microprocessor-based digital indicator number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

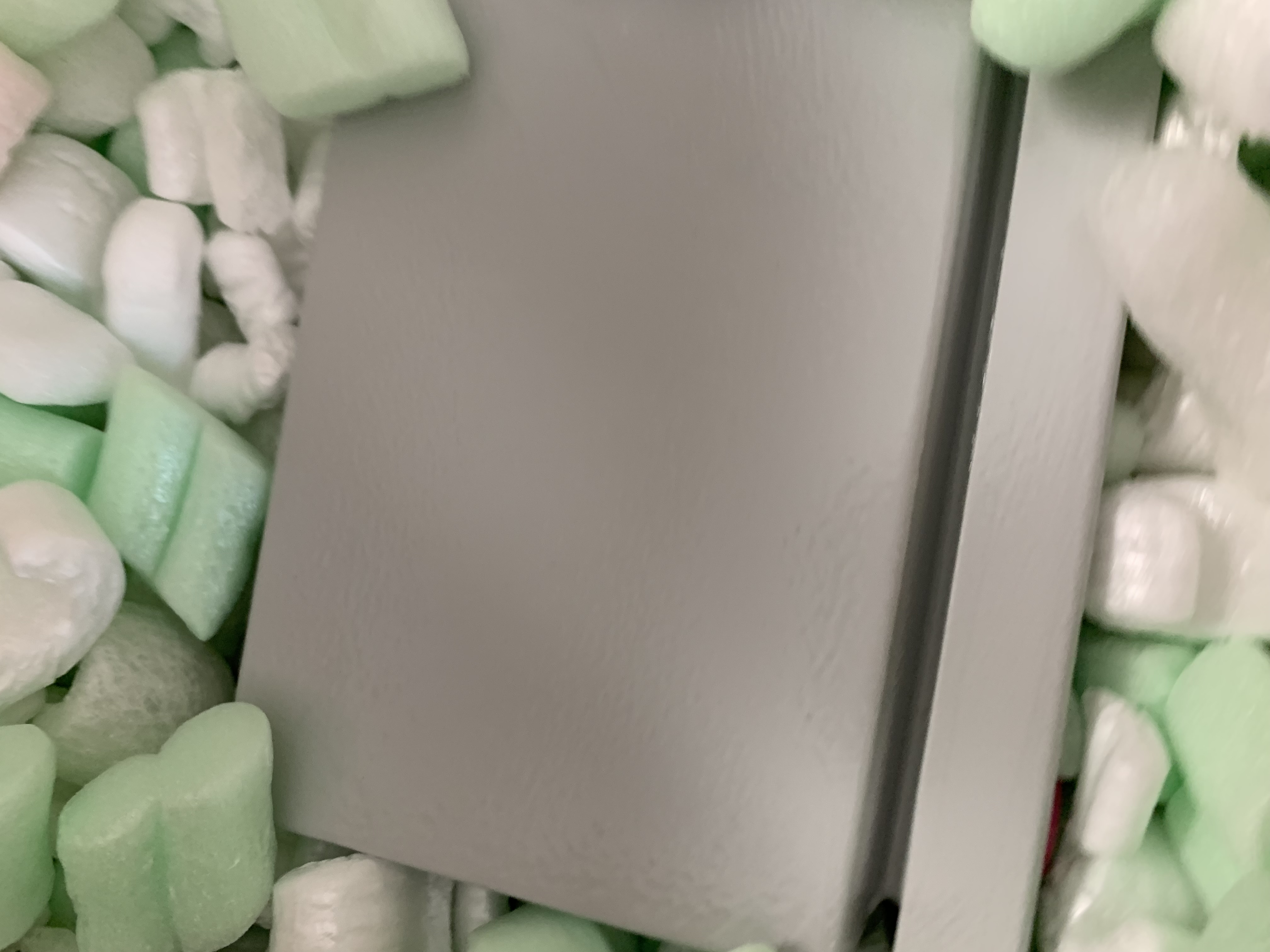

IMG-5209.jpg | |
|
|

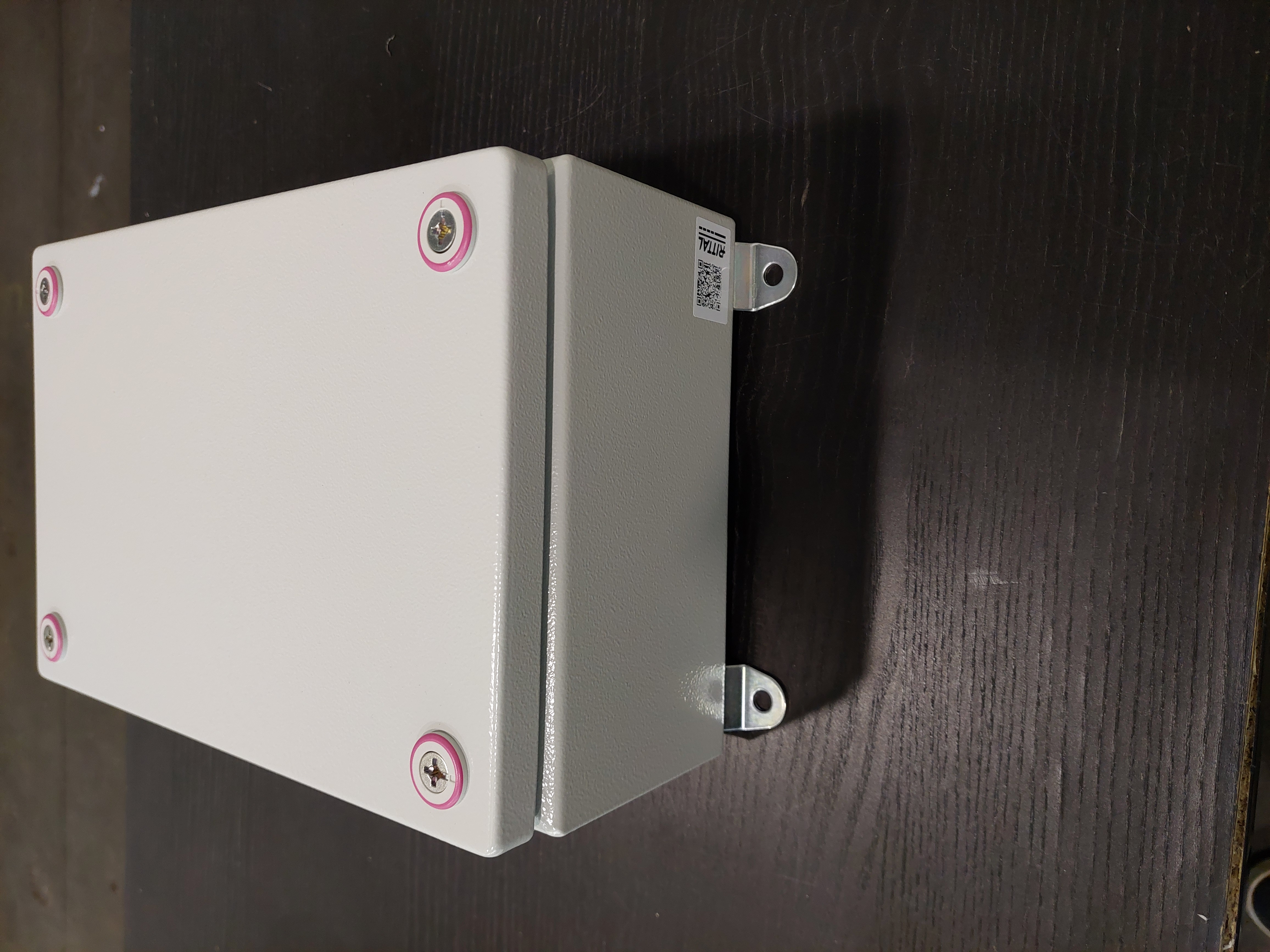

20230127_160409.jpg | |
|
|

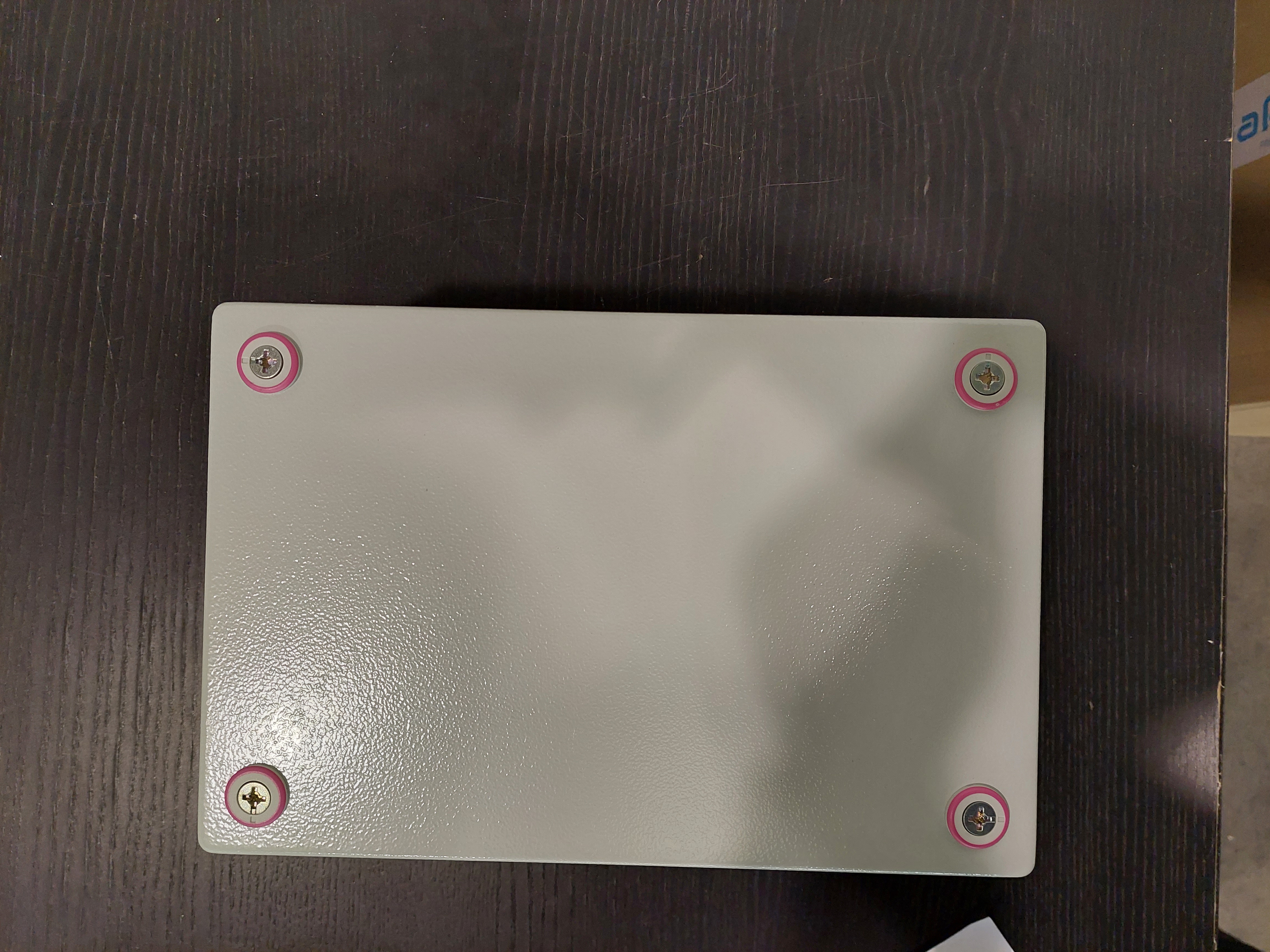

20230127_160416.jpg |
