| BRAND | Cal Controls |

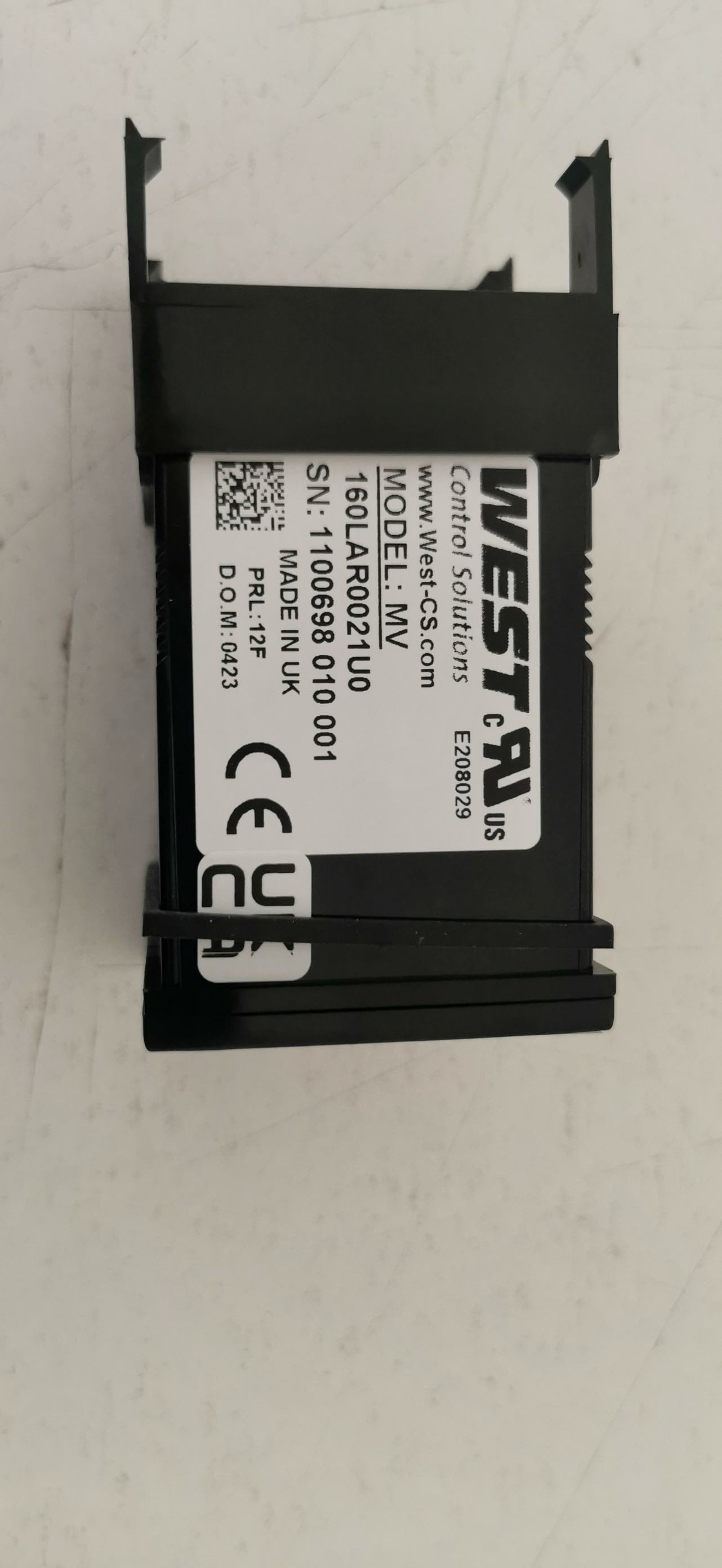

| Product | MV-160L-ARO-021U0 |
| Description | Controller |
| Internal code | IMP4684381 |
| Weight | 0.08 |
| Technical specification | Alarms High/Low, Deviation, Band Approvals CE, CSA, EMC, UL Calibration ±0.25% of full range ±1 LSD Control mode PID or on/off Digit size 18 mm upper / 10.2 mm lower Digital signal in No Frequency 50-60 Hz Galvanic isolation Between supply and input/output Indication Red LED Input J, K, C, R, S, T, B, L, N thermocouple, PT100, Linear 4-20 mA, 0-10 V IP class front IP65 Logic output >10 V DC @ 20 mA Material protection Polycarbonate Moisture resistance 20% - 95% Rh, non condensing Mounting Panel mount Mounting Panel Mount Number of digits 4 Output Logic (SSR), 1x relay Panel size 48x48 mm Power consumption 7.5 VA / 5 W Relay function SPST Relay output 2 A, 250 V AC, resistive load Sampling 4 times / second Storage temperature max 80 °C Storage temperature min -20 °C Supply voltage 24 V AC/DC Temperature resistance housing to 55 °C |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Cal Controls - MV-160L-ARO-021U0 Controller number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
