| BRAND | Burkert |
| Product | 2518-A-BCS/UC-00-3-N50-00-0-00000 * JL04 (00314802) |
| Description | device plug socket type A |
| Internal code | IMP3780795 |
| Weight | 0.027 |
| Custom code | 85369010 |
| Technical specification | 0031480 Plug A standard with 2518-A-BCS/UC-00-3-N50-00-0-00000 * JL04 Type 2518 2518 Connector diagram A Form A DIN EN 175301-803 BCS voltage 0-250 volts Frequency UC DC and AC (AC/DC) Circuit 00 standard or no circuit Number of poles 3 2 conductors + protective conductor Cable diameter N 6 - 8 mm Screw connection 5 M16 internal thread Cable cross section 0 none Cable material 00 Not specified Cable outlet 0 Not specified Length 00000 not specified Special feature JL04 UL 2238, CSA-22-2no182.3 fileE315587 Ambient temperature min -30 °C Ambient temperature max 90 °C Data sheet and instructions: www.buerkert.de/de/type/2518 Country of origin: Germany (Baden-Württemberg) Stat. Article number: 85369010 Net weight/ ST 0.027 kg |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Burkert - 2518-A-BCS/UC-00-3-N50-00-0-00000 * JL04 (00314802) device plug socket type A number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

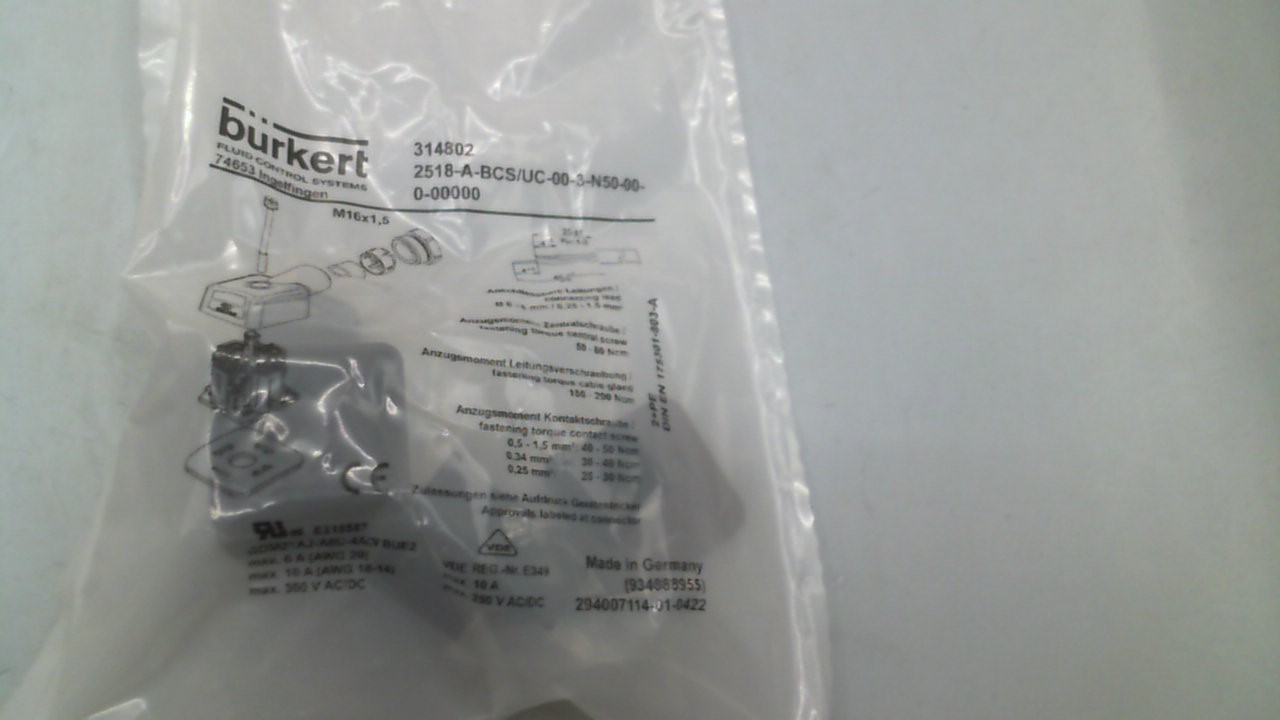

WIN_20230512_13_54_11_Pro.jpg |
