| BRAND | C.E. srl |
| Product | PF- 2F- VP- ET- 0- 1- 1 |

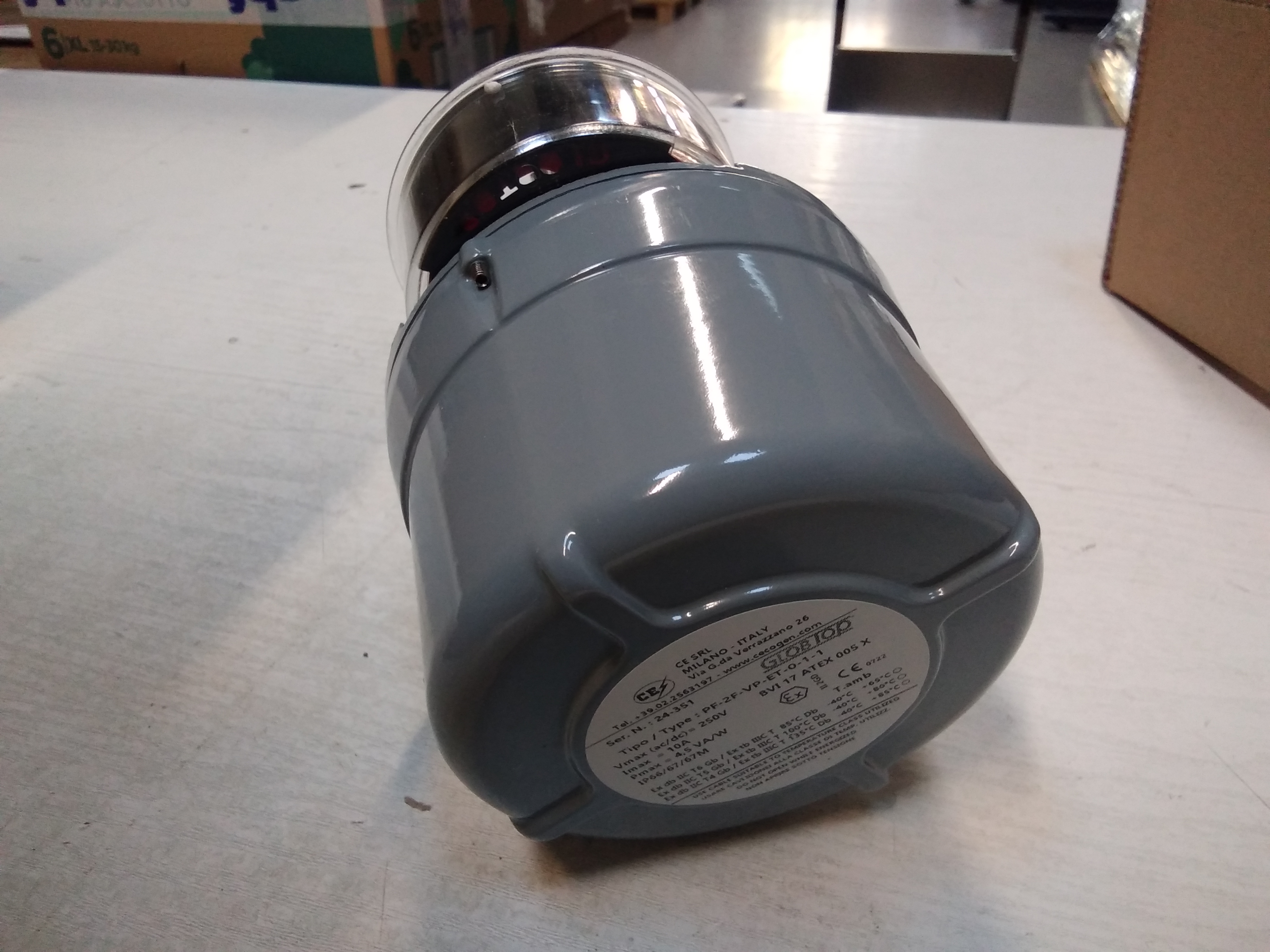

| Description | switch box |
| Internal code | IMP5022621 |
| Weight | 1 |
| Custom code | 85365019 |
| Technical specification | ATEX certification (bvi17atex0005x): Ex II 2GD Ex db IIC T6/T5/T4 Gb Ex tb IIIC IP66/67 T85/T100/T135°C Db (Tamb. from -40°C to +65/+80/+85°C) - Cable entry: no. 3 holes of M20x1.5F - Terminal block: 6 2.5mm2 terminals plus ground connection - Degree of protection: IP66/67 - Surface treatment: chromation (compliant with MIL5541 Class 1A) + polyester coating (RAL7000) (maximum resistance to chemical and atmospheric agents) - Position indicator: 3D (high visibility); red-green color - shaft coupling: namur - Each case is equipped with 2 MICRO-SWITCH (positive break) with the following characteristics: - mechanical limit switch series V3 (Crouzet) for the use of SIL1,2,3 - mechanical contact (positive break): SPDT - contact capacity (dc): from 30mA @ 10Vdc up to 6A @ 24Vdc - resistive load - contact capacity (ac): from 30mA @ 10Vac up to 6A @ 240Vac- resistive load - working temperature: see T.amb. of enclosure certification. - enclosure: plastic material |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for C.E. srl - PF- 2F- VP- ET- 0- 1- 1 switch box number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
