| BRAND | Interroll |
| Product | RD-EC5000 RL:803 / RD-51DE-2000000-R19-000 |
| Internal code | IMP5075790 |
| Weight | 5.17 |
| Technical specification | Article number: RD-51DE-2000000-R19-000 Roll length (RL) 803.0 mm Installation length (EL): 839 mm Protection class: IP54 UL certification Yes power 35 W Nominal voltage 24 V Interface: analog Gear ratio 30 SCOPE OF APPLICATION (temperature) Standard, 0 - 40°C Cable length: 500.0 mm Nominal torque [Nm]: 1.49 Galvanised pipe material Outer tube diameter: 50.0 mm Tube wall thickness: 1.5 mm Drive element: Poly-Vee drive head Number of drive elements: 9 Rib nut mounting material Bearing axle diameter: 11.0 mm Axle design. Non-cable side: spring axle Axle material: stainless steel Axle shape bearing size: hexagon small diameter: 0.0 mm large diameter: 0.0 mm |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Interroll - RD-EC5000 RL:803 / RD-51DE-2000000-R19-000 number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

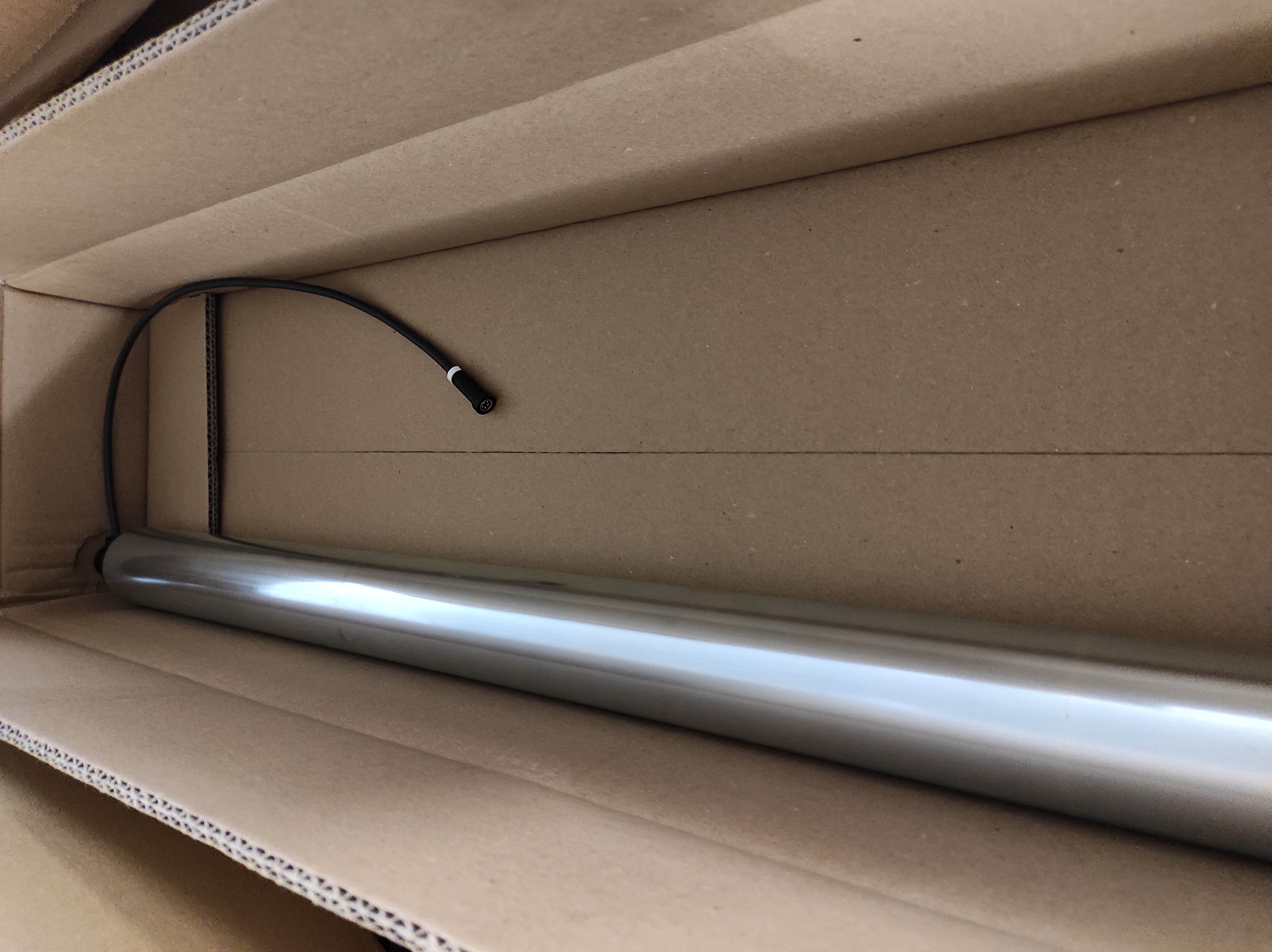

IMG_20250314_093606.jpg |
