| BRAND | Idec |

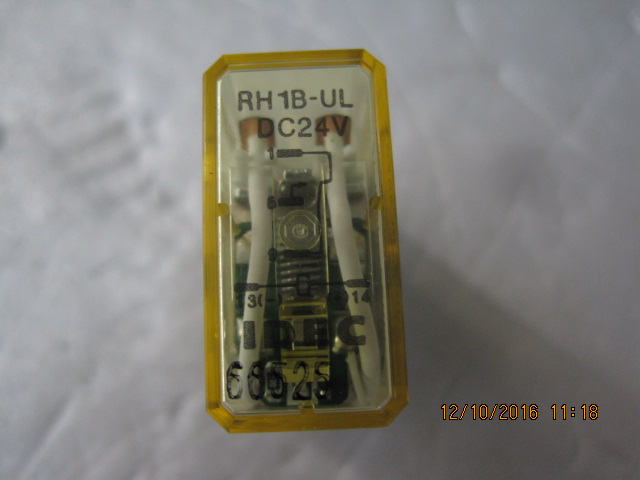

| Product | RH1B-ULDC24 |
| Description | Relay Plug-In SPDT 10A 24VDC General Purpose Relay |
| Internal code | IMP1800110 |
| Weight | 0.03 |
| Technical specification | Type: Compact coil voltage: 24 VDC Relay contact type: 1 form C (SPDT-NO, NC) Rated contact current: 10 A Contact clamp: plug in Mounting type: Panel mount Switching voltage: 220 VAC, 30 VDC Spool type: Non-latching Coil resistance: 750 ohms coil current: 32 mA Contact material: Silver Cadmium Oxide (AgCdO) Series: RH Length: 27.5 mm Width:14mm Height: 35.6 mm Make: IDEC Contact rating: 10 A Power consumption: 800 mW |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Idec - RH1B-ULDC24 Relay Plug-In SPDT 10A 24VDC General Purpose Relay number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
