| BRAND | Valco |
| Product | S1.B45.7.0150.O.25GO.S1L1.I3.110 |
| Description | Level control |
| Internal code | IMP5003586 |
| Weight | 0.33 |
| Custom code | 90261029 |
| Technical specification | Level control - No. 1 contacts Float type B45 - Spansil material Brass rod 1" Gas-M connection - brass material Seal material: NBR Max working pressure 10 bar Max working temperature 105 °C Total length L0 = 150 mm. Intervention rates in mm and contact situation in the absence of level: L1 = 110 = Contact type = SPDT Max electrical load: Contact type 7 = 230VCA/80VA/1A - 230Vcc/60W/1A Electrical output: Connector type S1 - DIN-43650-A - PG9 Degree of protection IP65 ns. cod. 00.0002.2859 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Valco - S1.B45.7.0150.O.25GO.S1L1.I3.110 Level control number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

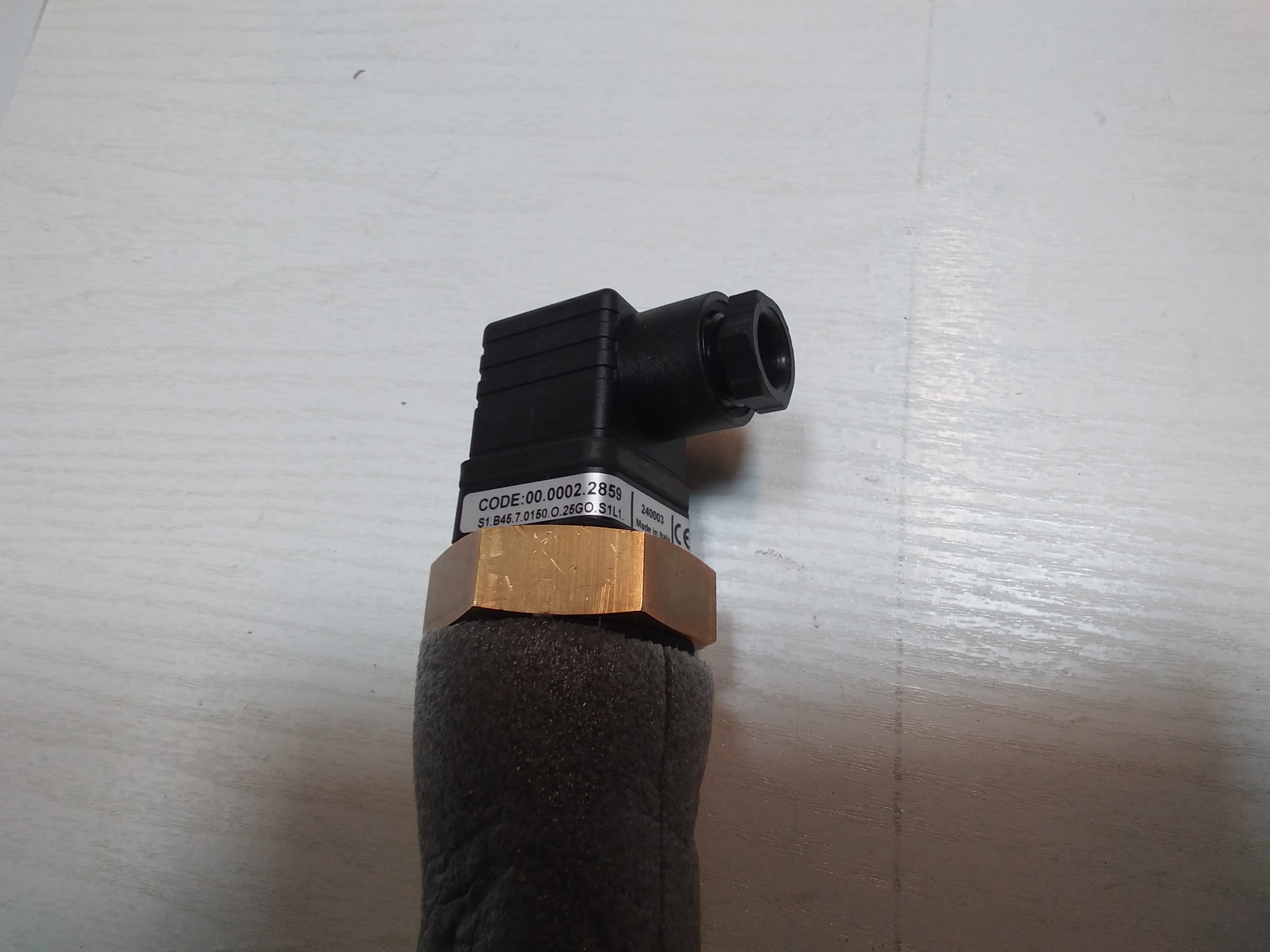

IMG_20240903_150245.jpg |
