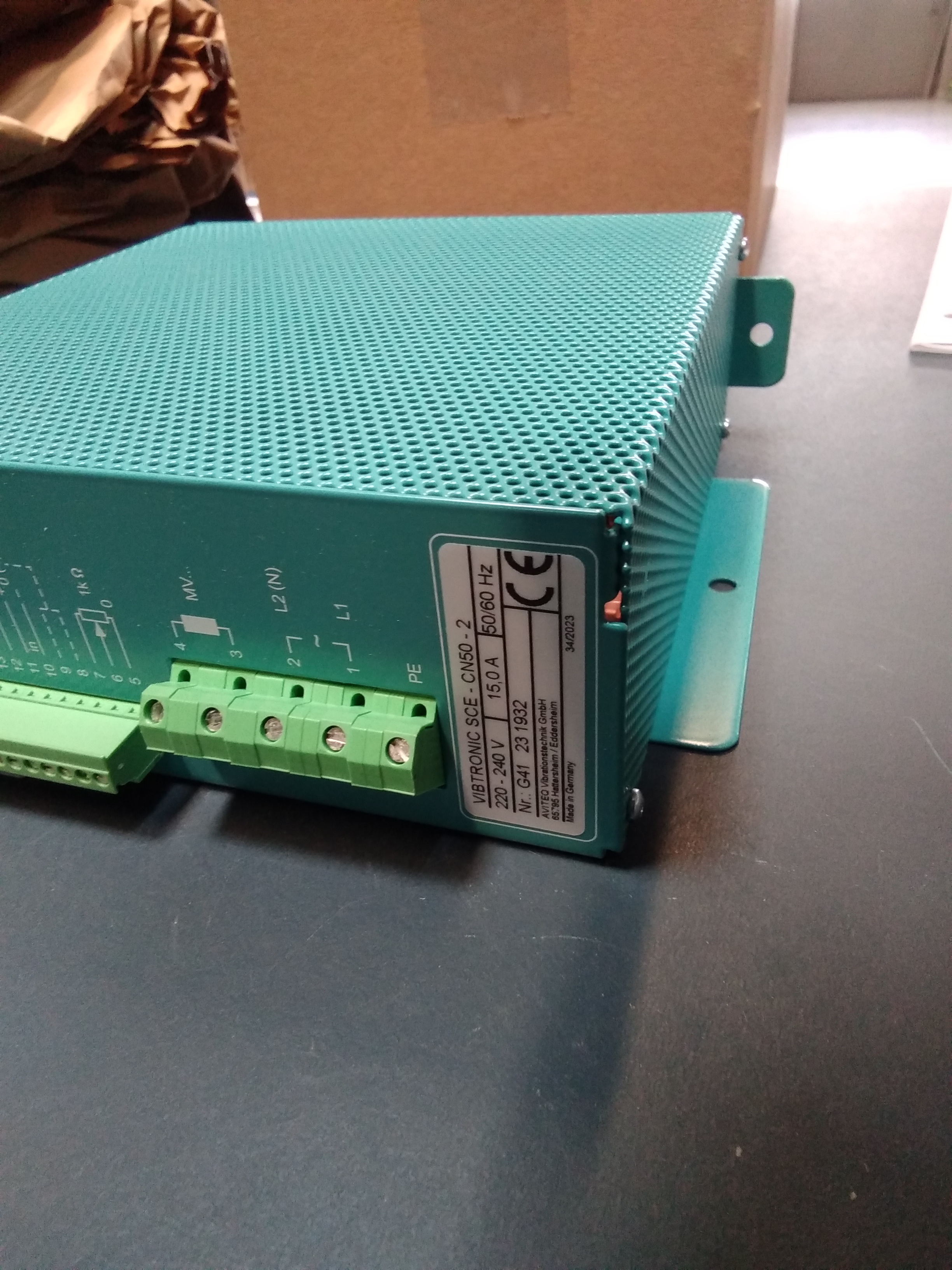

| BRAND | Aviteq |
| Product | SCE-CN50-2 |
| Description | control unit |
| Internal code | IMP425313 |
| Weight | 2.2 |
| Custom code | 85365003 |
| Technical specification | <p>Dimensions 200*62**200 mm (HxWxD)</p><p>Weight 2.2 kg<br>Customs tariff HS code 85365003<br>Vibration rate SC/E.. 50... 3,000 min-1<br>Version For installation in an on-site control cabinet<br>Perforated steel housing<br>RAL 5018 powder-coated<br>power cable without<br>Network security<br>Magnetic vibrator protection circuit diagram F11: sluggish<br>We recommend protection in accordance with the rated current of<br>connected magnetic vibrator.<br>Semiconductor protection circuit diagram F1: super fast<br>Installation is mandatory.<br>Already included in SC.. -2 IP55 series controllers.<br>Network fluctuation compensation ± 10%, the oscillation width remains constant<br>Proportional change in the setpoint range<br>Switch release (continuous contact, potential-free) or<br>Voltage signal +24 V (DC)<br>Inputs to external external control variables<br>0-10V (DC), 0-20mA (DC), 4-20mA (DC)<br>Remote monitoring outputs, relay output<br>Protection class IP20 according to DIN EN 60529<br></p> |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Aviteq - SCE-CN50-2 control unit number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
