| BRAND | Camille Bauer |
| Product | p/n: 142175, Type: SINEAX DME442 |

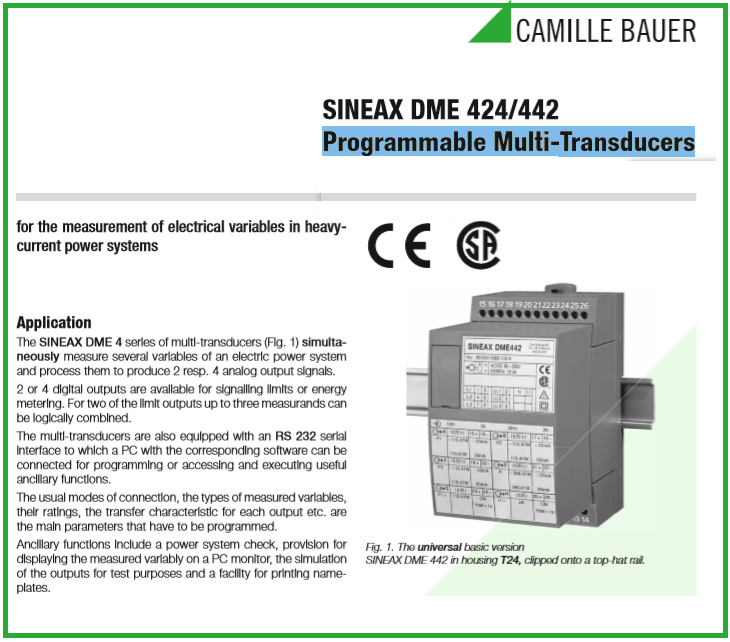

| Description | Programmable Multi-Transducers |
| Internal code | IMP504987 |
| Weight | 2.5 |
| Custom code | 85437090 |
| Technical specification | Programmable Multi-Transducers Features . 1- Simultaneous measurement of several variables of a heavy-current power system / Full supervision of an asymmetrically loaded four-wire power system / rated current 1 to 6 A, rated Voltage 57 to 400 V ( Phase-to-neutral ) or 100 to 693 V ( Phase to phase ) 2- Input Voltage up to 693 V ( Phase to Phase ) 3- Universal analog outputs ( Programmable ) 4- High accuracy : U/I 0.2%, P 0.25% ( Under reference conditions ) 5- Universal digital outputs ( meter transmitter, limits ) 6- Windows software with password protection for programming, data analysis power system status simulation, acquisition of meter data making settings 7- AC/DC power supply / Universal 8- Provision for either snapping the transducer onto top-hat rails or securing it with screws to a wall or panel Measured Variables . 1- Current ( rms ) 2- Voltage ( rms ) 3- Active/reactive/apparent power 4- Power factor 5- RMS value of the current with wire setting range ( bimetal measuring function ) Conditions. - Operating temperature :- 10 to + 55 C - Rated frequency: 50 … 60 Hz |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Camille Bauer - p/n: 142175, Type: SINEAX DME442 Programmable Multi-Transducers number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
