| BRAND | ARI |
| Product | ARI-STEVI 441 |
| Description | Straight control valve with flanges and bellows seal |
| Internal code | IMP4483741 |
| Weight | 34 |
| Custom code | 84818059 |
| Technical specification | Figure 23.441 DN 40 EN-JS1049 DN 40 Discount group: I11 Nominal pressure: PN 25 Flange drilling: according to DIN PN25 Kvs value: 25 Characteristic curve: equal percent Spindle seal: stainless steel bellows Safety stuffing box: pure graphite drive: PREMIO Valve stroke: 20 mm Drive type: PREMIO 2.2kN max. closing pressure (bar): 10.6 Motor type: Synchronous motor Voltage: 230 V 50/60 Hz Actuation speed: 0.38 mm/sec 0.45 mm/sec. Operating time: 53/45 s Spindle projection: 83 mm Coupling: M12 thread |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for ARI - ARI-STEVI 441 Straight control valve with flanges and bellows seal number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

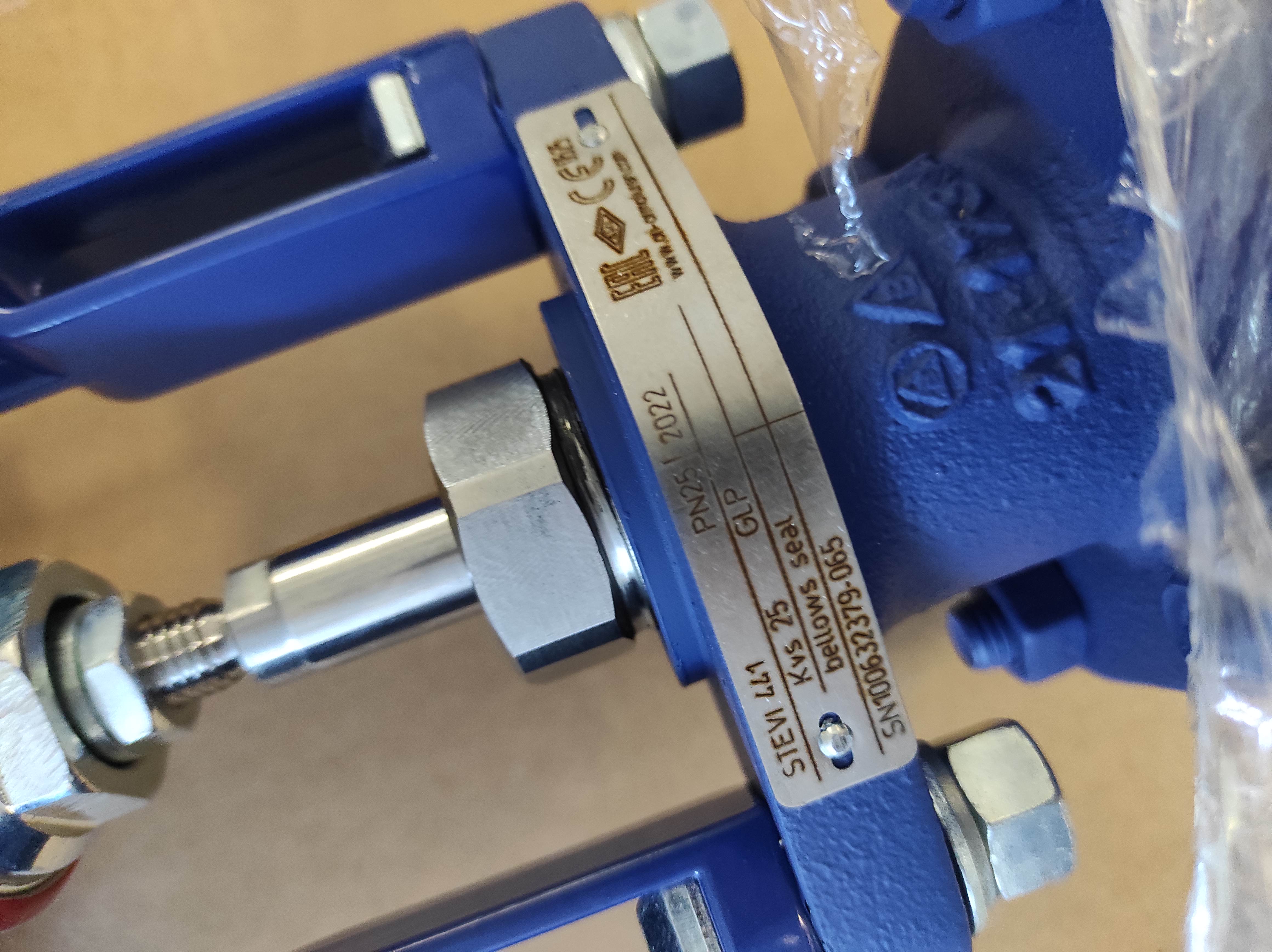

IMG_20220404_110550.jpg | |
|
|
IMG_20220404_110620.jpg |
