| BRAND | Tapflo |

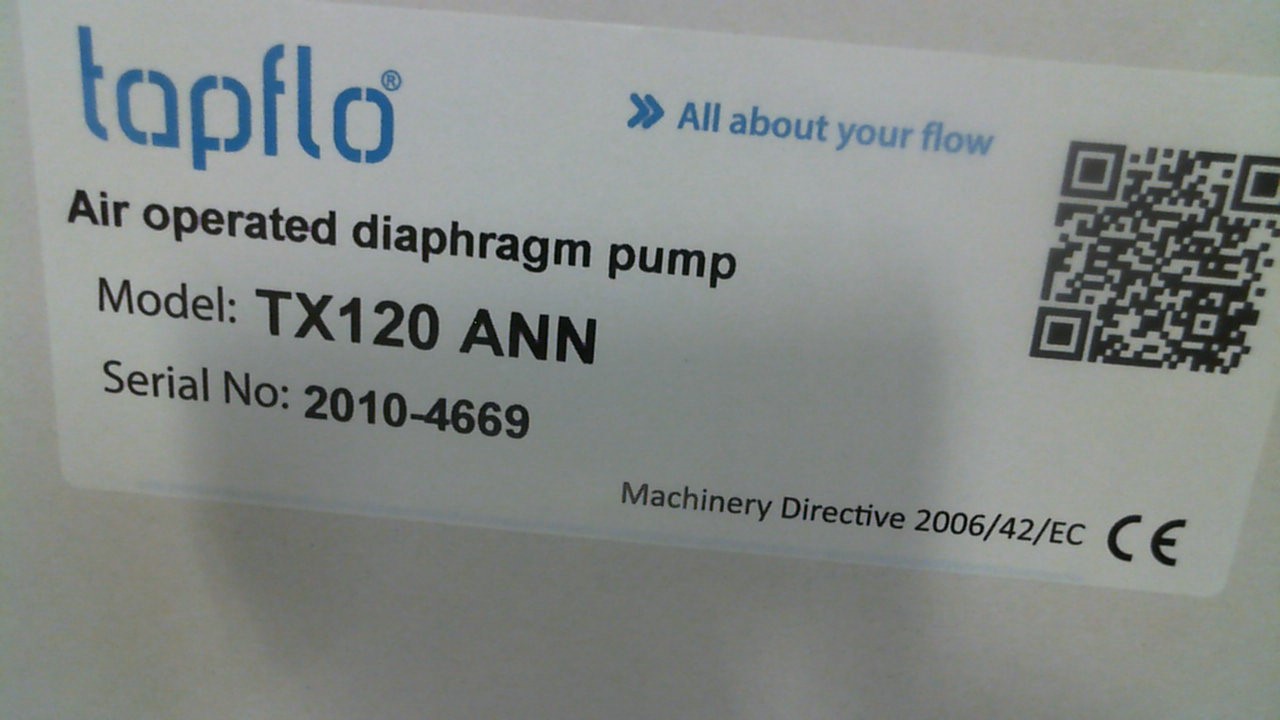

| Product | TX120ANN |
| Description | Air Diaphragm |
| Internal code | IMP4231790 |
| Weight | 9 |
| Custom code | 84135080 |
| Technical specification | Type TX120ANN ATEX certified Max. flow rate 158 l/min (for water) Max. discharge pressure 8 bar at 8 bar compressed air Suction height dry/filled 3.4 mWs /9 mWs Max. solids size 6 mm Max. temperature range -20ºC... +°C Center Block Aluminium (not affected by product) Product wetted housing parts aluminium Stainless steel valve seats AISI 316L Membranes NBR Valve balls NBR Suction and pressure connection G 1" internal thread (DN 25) Seals KlingerSeal/NBR Control valve brass, NBR ATEX Certification II 2G Ex h IIC T6... T4 Gb; II 2D Ex h IIIC T60°C... T125°C For air consumption see the flow curve Box contents: Pump including silencer |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Tapflo - TX120ANN Air Diaphragm number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
