| BRAND | Sodemann |
| Product | T135-210-750L |

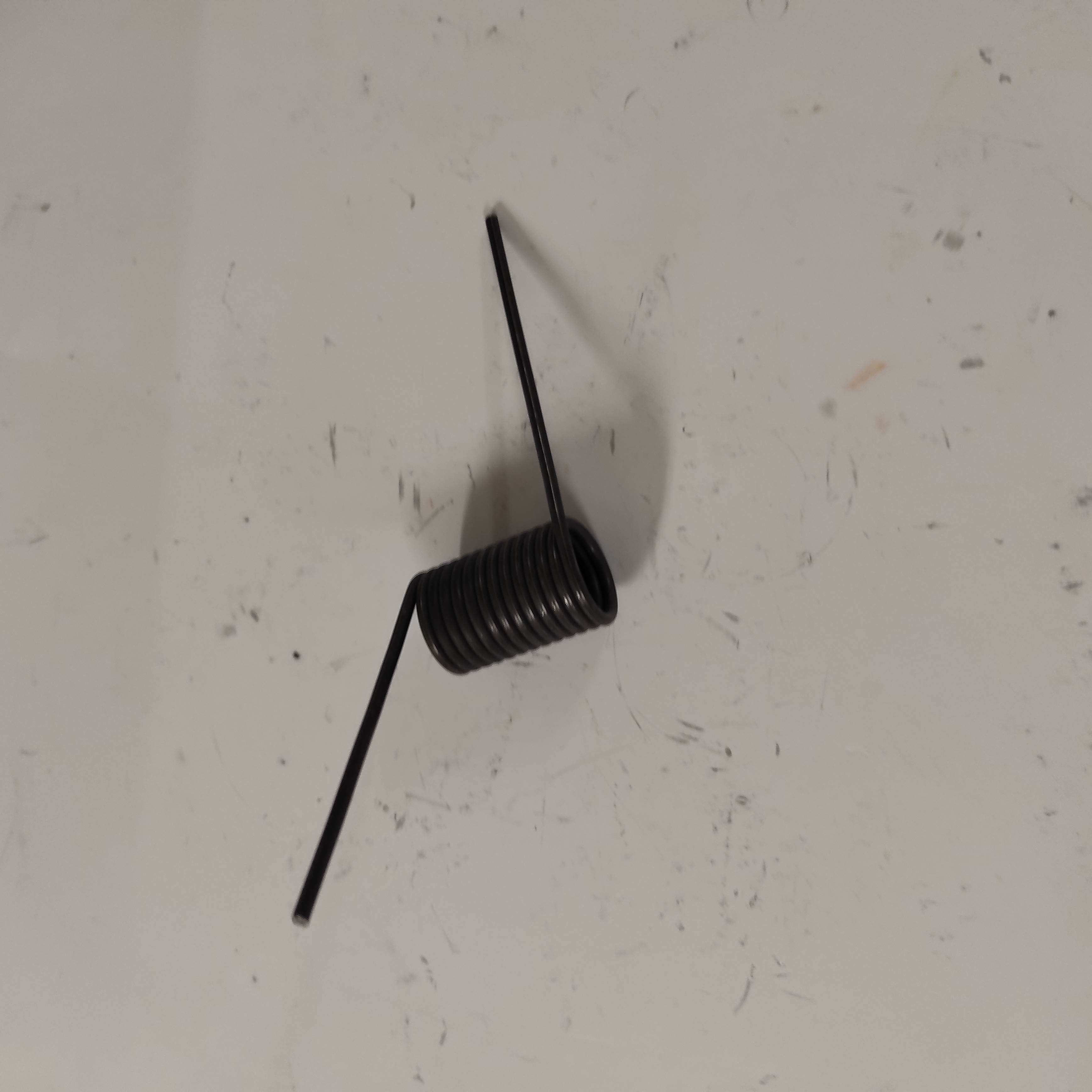

| Description | Torsion Spring |
| Internal code | IMP4261985 |
| Weight | 0.103 |
| Custom code | 73202089 |
| Technical specification | Material piano wire d - wire thickness (mm) 3.43 De - Outer diameter (mm) 29.46 Di - inner diameter (mm) 22.60 Ddmax - Max mandrel (mm) 19.05 n - number of elastic windings (pcs.) 12.92 Ls1 - Leg length (mm) 101.60 αn - Maximum rotation (degrees) 210.00 Leg position 2.00 Mn - Maximum torque (N mm) 4,639.00 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Sodemann - T135-210-750L Torsion Spring number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
