| BRAND | ALTMANN |
| Product | T18-500 |
| Description | Potentiometer |
| Internal code | IMP4175530 |
| Weight | 0.415 |
| Custom code | 85333100 |
| Technical specification | Article 104890 T18-500 potentiometer Resistance: 0.13 K ohm, tolerance: ± 5%, Electrical angle: 316°, Mechanical angle: 320°, Short circuit range: 2x2°, Connection type: plug-in connection, Central mounting: M9x0.75, shaft diameter: 6.00 mm, wavelength: 9.6 mm, Wave on both sides: slit on the back, left stop max. 4 ohms RoHS compliant Please note the following special features of the potentiometer: - Central mounting: M9x0.75 - Wavelength: 9.6 mm - Wave on both sides: slit on the back - Left stroke max. 4 ohms |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for ALTMANN - T18-500 Potentiometer number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

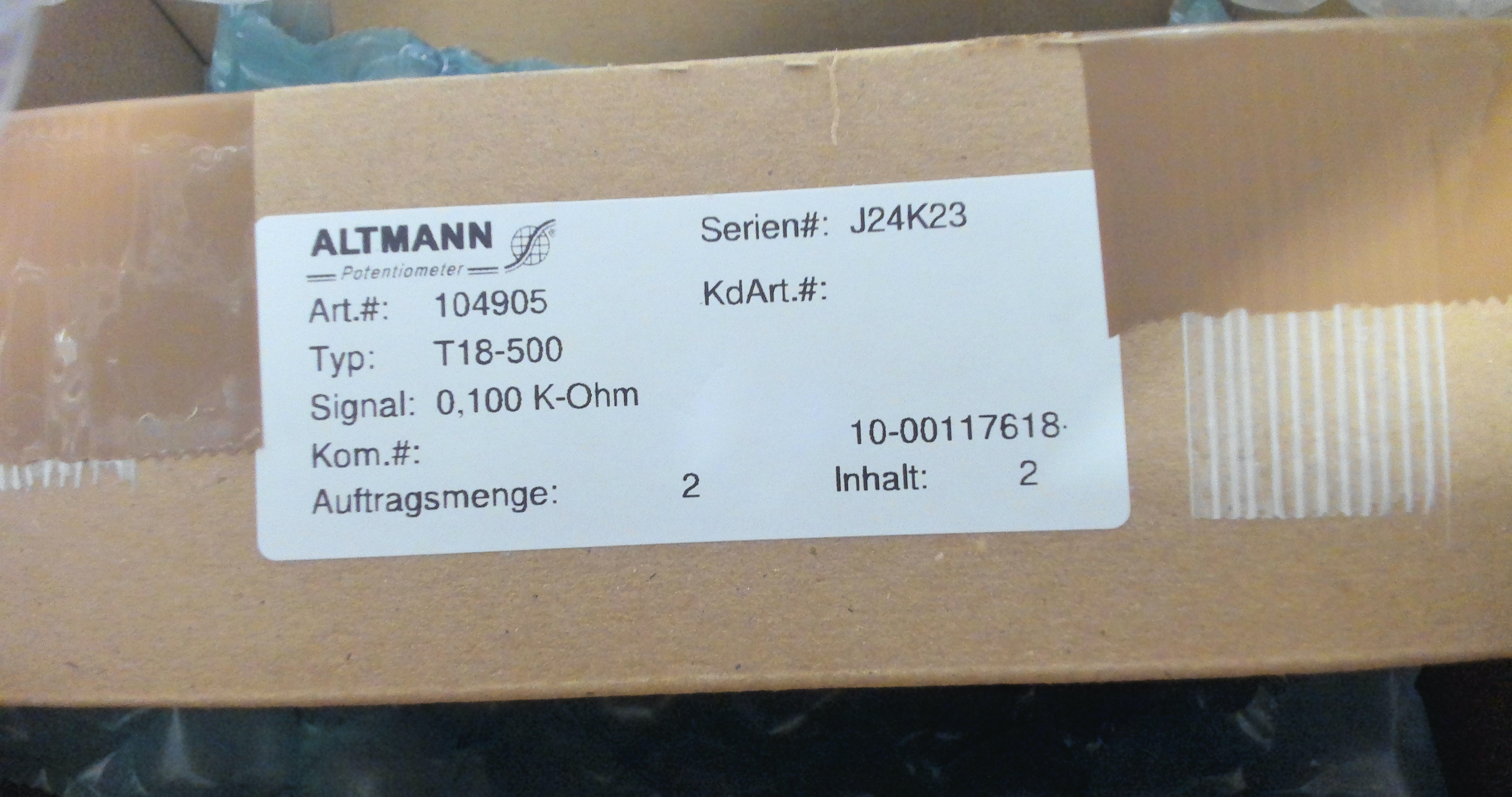

WIN_20240614_14_47_53_Pro.jpg | |
|
|
WIN_20240617_12_22_53_Pro.jpg | |
|
|

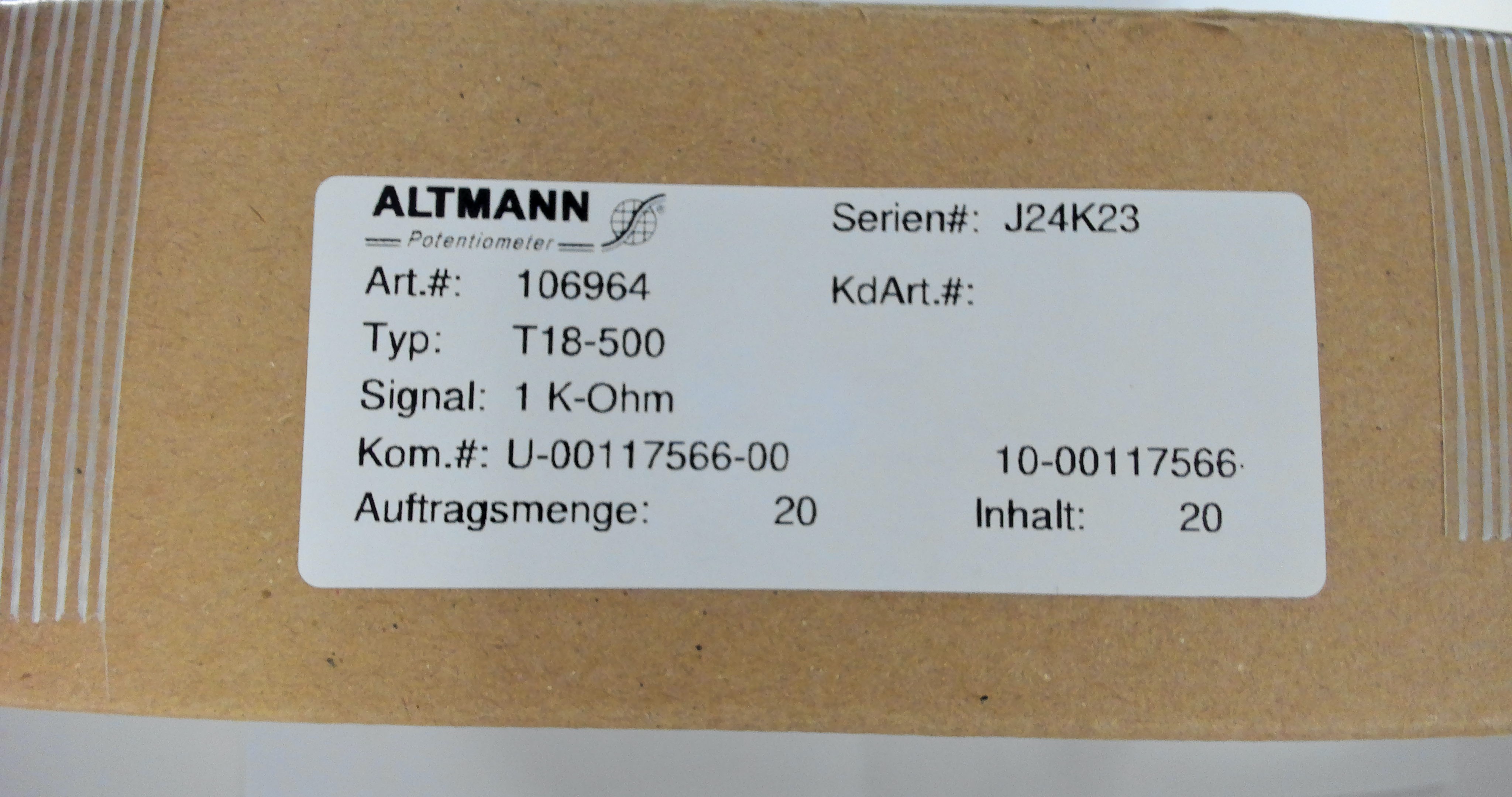

20240625_142839.jpg |
