| BRAND | Tapflo |
| Product | T50PEP |
| Description | compressed air diaphragm pump |
| Internal code | IMP5138674 |
| Weight | 5 |

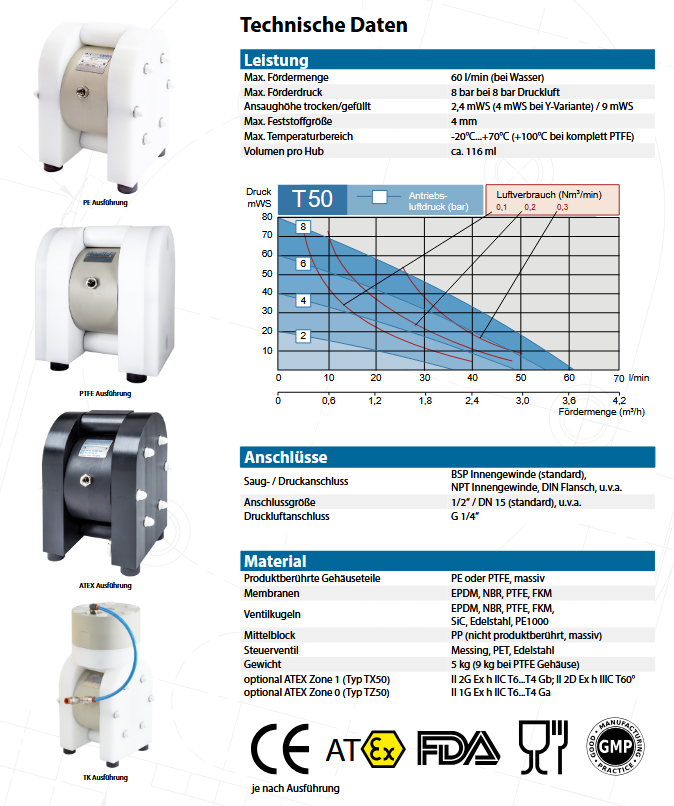

| Technical specification | <p>Model T50PEP</p><p>Technical description:<br>Max. flow rate 60 l/min (with water)<br>Max. delivery pressure 8 bar with 8 bar compressed air<br>Suction height dry/filled 2.4 mWs/ 8 mWS<br>Max. solid size 4 mm<br>Max. temperature range -20ºC... +70°C<br>Center block PP, solid (not in contact with the product)<br>Case parts in contact with the product, PE, solid<br>PE 1000 valve seats<br>EPDM membranes<br>PE 1000 valve balls<br>Suction/pressure connection G 1/2" internal thread (DN 15)<br>EPDM seals<br>Brass control valve, NBR</p><p>Air consumption, see flow curve</p><p>Box contents:<br>pump including muffler and rubber feet<br></p> |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Tapflo - T50PEP compressed air diaphragm pump number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
Page2.PNG | |
|
|
Page1.PNG |
