| BRAND | Weiss |
| Product | TC-G120-F04D-1RIB-ZZXP-K1ZZZ-ZZ00 |
| Description | table |
| Internal code | IMP5098737 |
| Weight | 22 |
| Technical specification | Curve characteristics fixed TC rotary table series G version Model size 120 Division 04 Gear level D MTM customer [kgm²] 0.32 max. moment of inertia [kgm²] 0.47 Horizontal installation position Right transmission position Engine position inside BRE24V drive motor standing middle section recessed Standard output flange bearing Chassis option without PNP limit switch (24V-DC) Curve encoder without Special painting Miscellaneous without Engine type 56L4 Motor current [A] 0.8/0.46 Motor power [kW] 0.12 Engine speed [rpm] 1380 Motor voltage [V] D230/Y400 Motor frequency [Hz] 50 Rotational movement time [s] 0.46 Gear stages 1 UL certification E254469 tolerates unprocessed cast surfaces in accordance with DIN EN ISO 8062-3:2008 -09 — DCTG 11 Flatness of the contact surface 0.04 Arbitrary direction of rotation Please note Application-specific design can deviate Language German documentary Standard warranty * Special color RAL 5024 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Weiss - TC-G120-F04D-1RIB-ZZXP-K1ZZZ-ZZ00 table number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

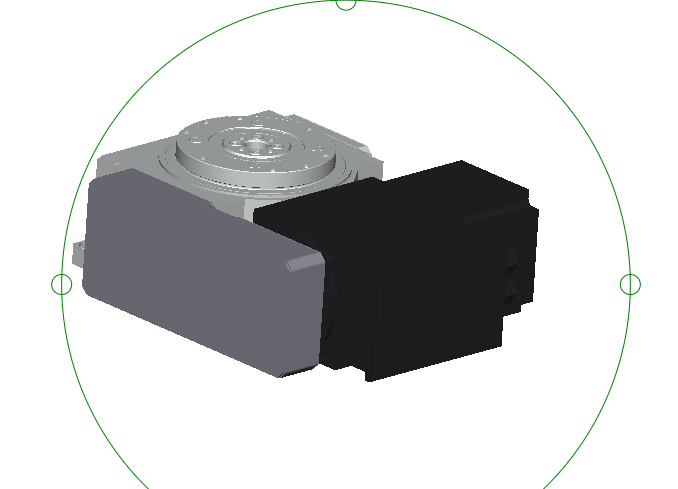

Screenshot_3.png | |
|
|
TC0120G_0000_0000_10_1 (33).stp |
