| BRAND | Wika |
| Product | TR11-C-ZZZZ-13DR-BS1A-ZZ-AUHSGL9026005000325-ZZZZ |
| Description | TR11-C RTD assembly with fabricated threaded protection tube (tubing) |
| Internal code | IMP5030193 |
| Weight | 0.4 |
| Custom code | 90251900 |
| Technical specification | Specifications according to data sheet: TE 60.03 1xPt100, 3-wire Class B, IEC 60751 Temperature range of selected class: -50...+250°C BS, Aluminum, flat cover Cable entry: Standard cable entry Thread size cable entry: M20 x 1.5 Transmitter: Without (terminal block) Protection tube: Straight, plain, with / w/o compression fitting Connection to neck tube: M24 x 1,5 Protection tube diameter: 8x1 mm Protection tube material: Stainless steel 316L Process connection: G 1/2 B compression fitting (metal ferrule) Insertion length [A] [U1]: 260 mm Neck length [MH/N]: 50 mm (approx. 2 inch) Sealing: Without Measuring insert: Not removable (no measuring insert) Thermowell specials: Without |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Wika - TR11-C-ZZZZ-13DR-BS1A-ZZ-AUHSGL9026005000325-ZZZZ TR11-C RTD assembly with fabricated threaded protection tube (tubing) number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

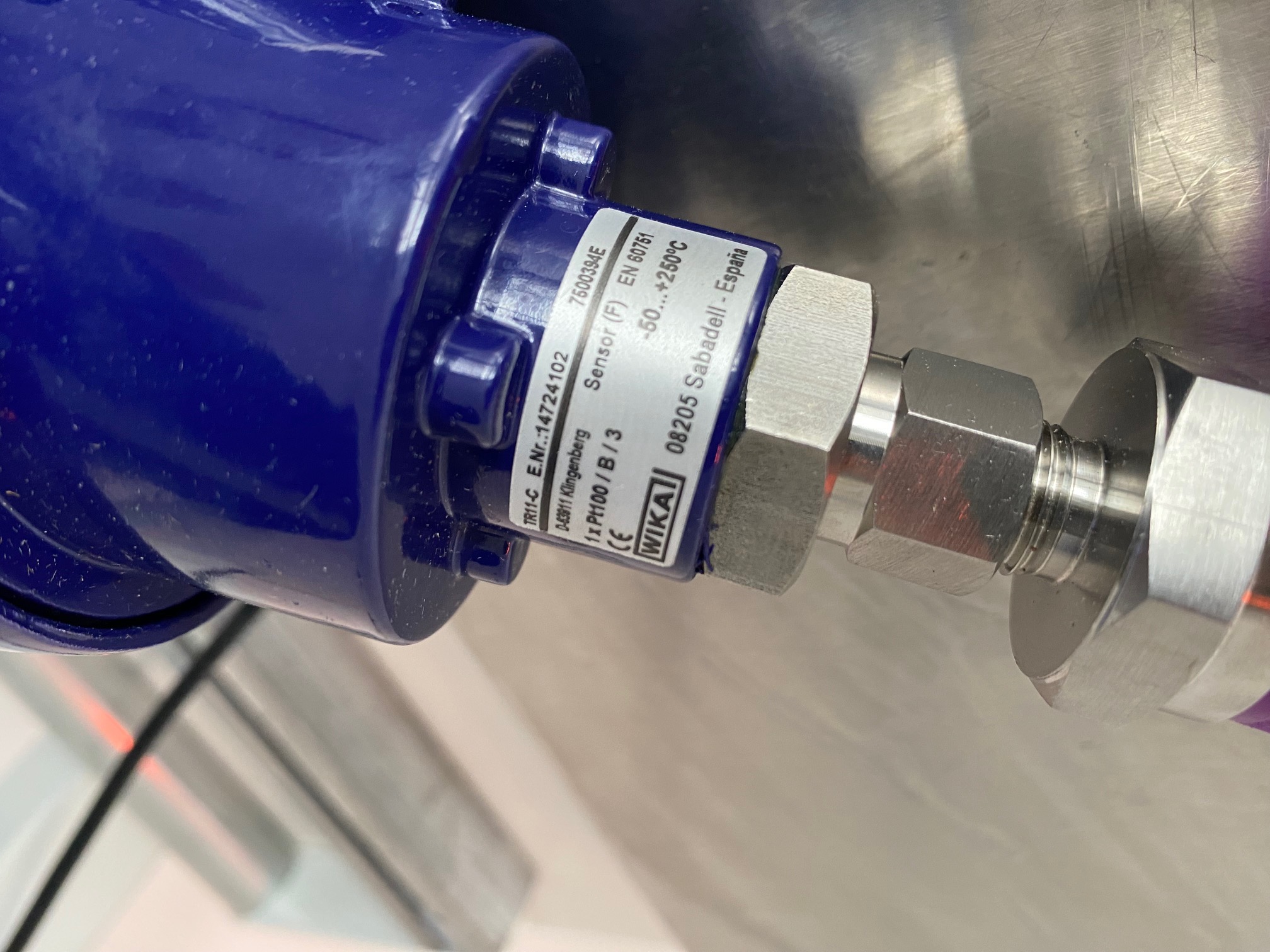

1310636-2.jpg | |
|
|

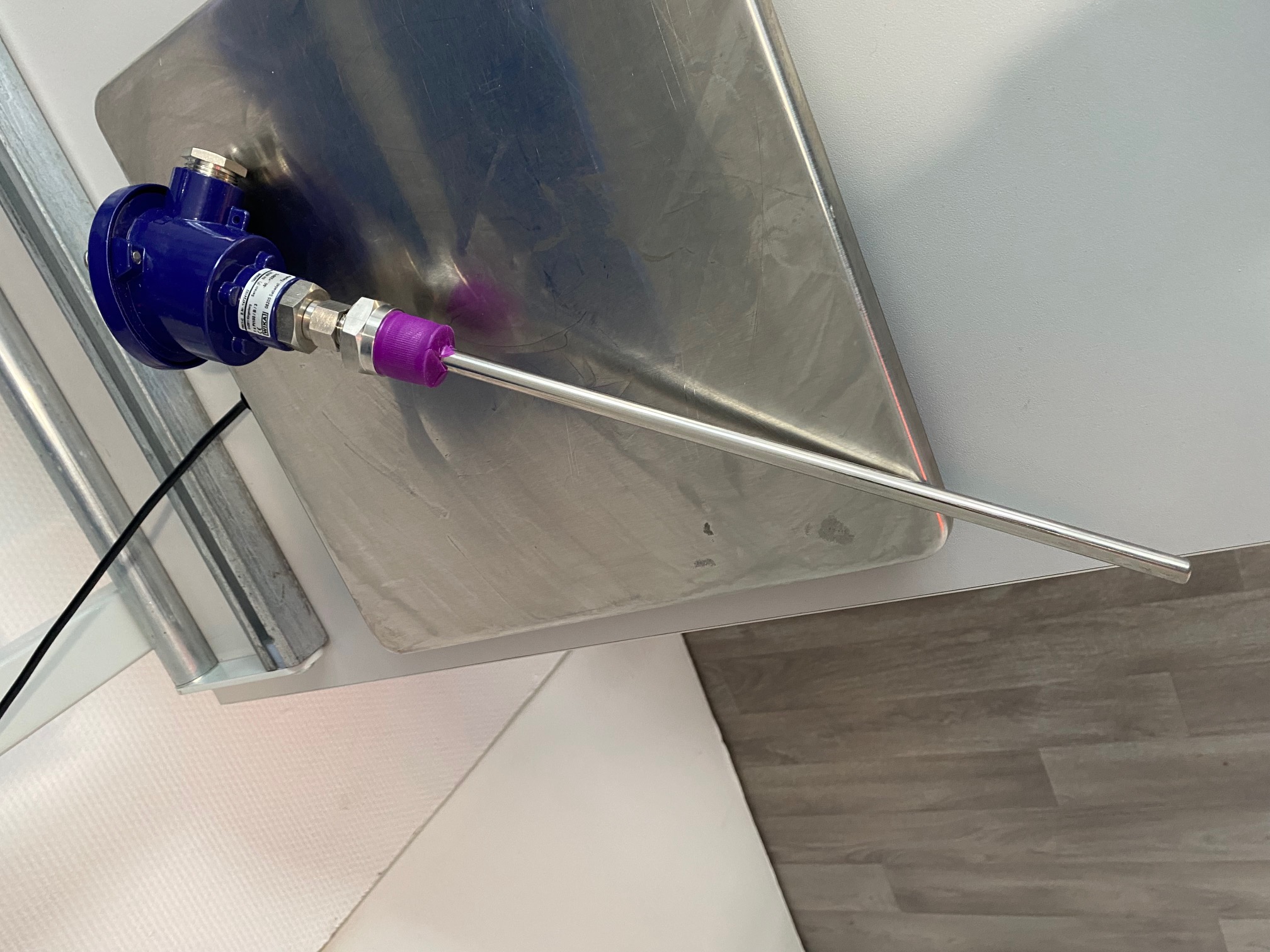

1310636-1.jpg |
