| BRAND | Tapflo |
| Product | TX70ATS |
| Internal code | IMP4878573 |
| Weight | 6 |
| Technical specification | 84135080 Technical description: Maximum flow rate 78 l/min (with water) Max. delivery pressure 8 bar with 8 bar compressed air Suction height dry/filled 3 mWs/9 mWs Maximum solid size 4 mm Maximum temperature range -20ºC... +110°C Aluminum center block (not affected by the product) Aluminum housing parts in contact with the product AISI 316L stainless steel valve seats PTFE membranes Stainless steel valve balls Suction/pressure connection G 3/4" internal thread (DN 20) KlingerSeal/NBR seals Brass control valve, NBR ATEX certification II 2G Exh IIC T6... T4 Gb; II 2D Ex h IIIC T60°C... T125°C Db Weight 5 kg Air consumption see delivery curve Scope of delivery: Pump including silencer |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Tapflo - TX70ATS number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

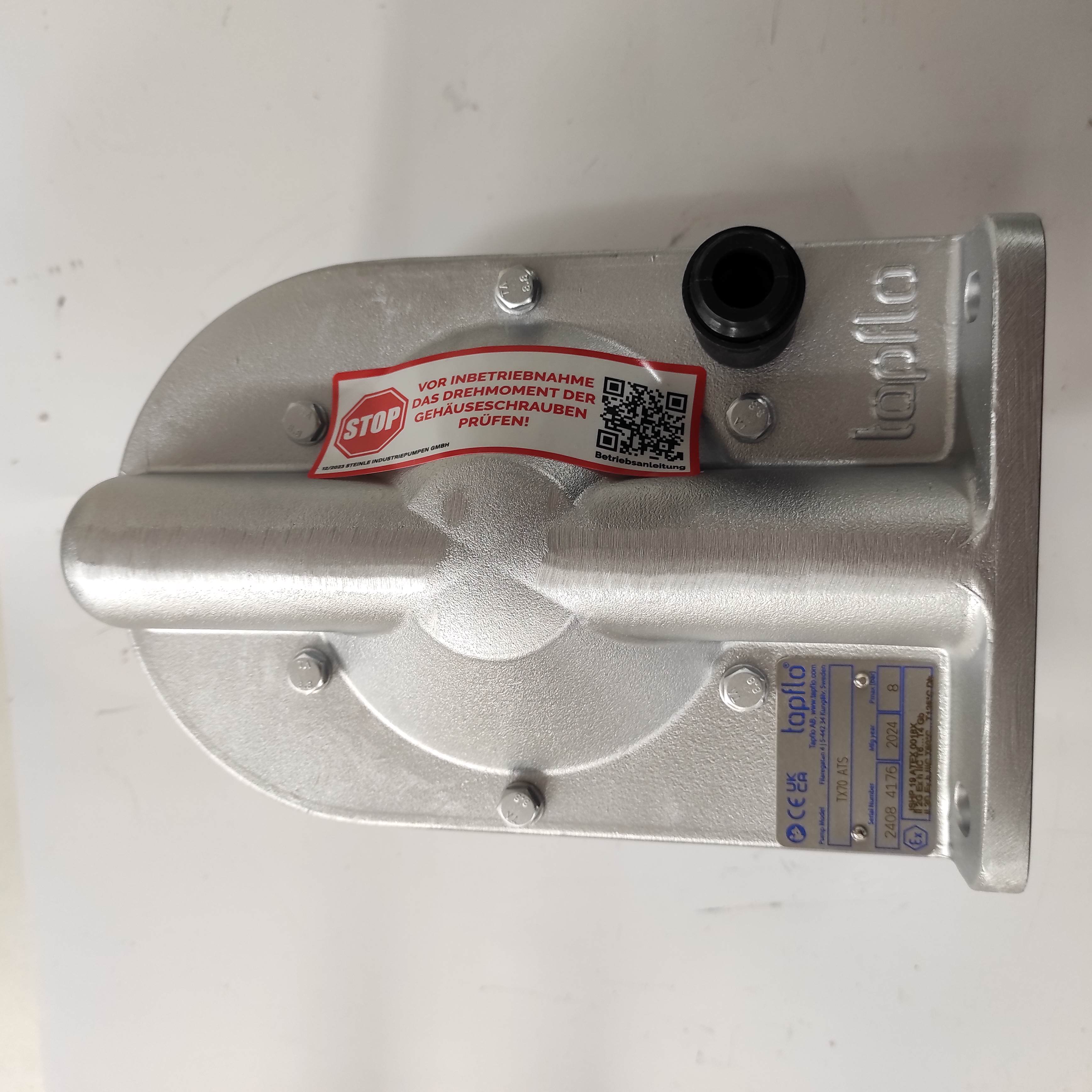

IMG_20241105_083543.jpg | |
|
|

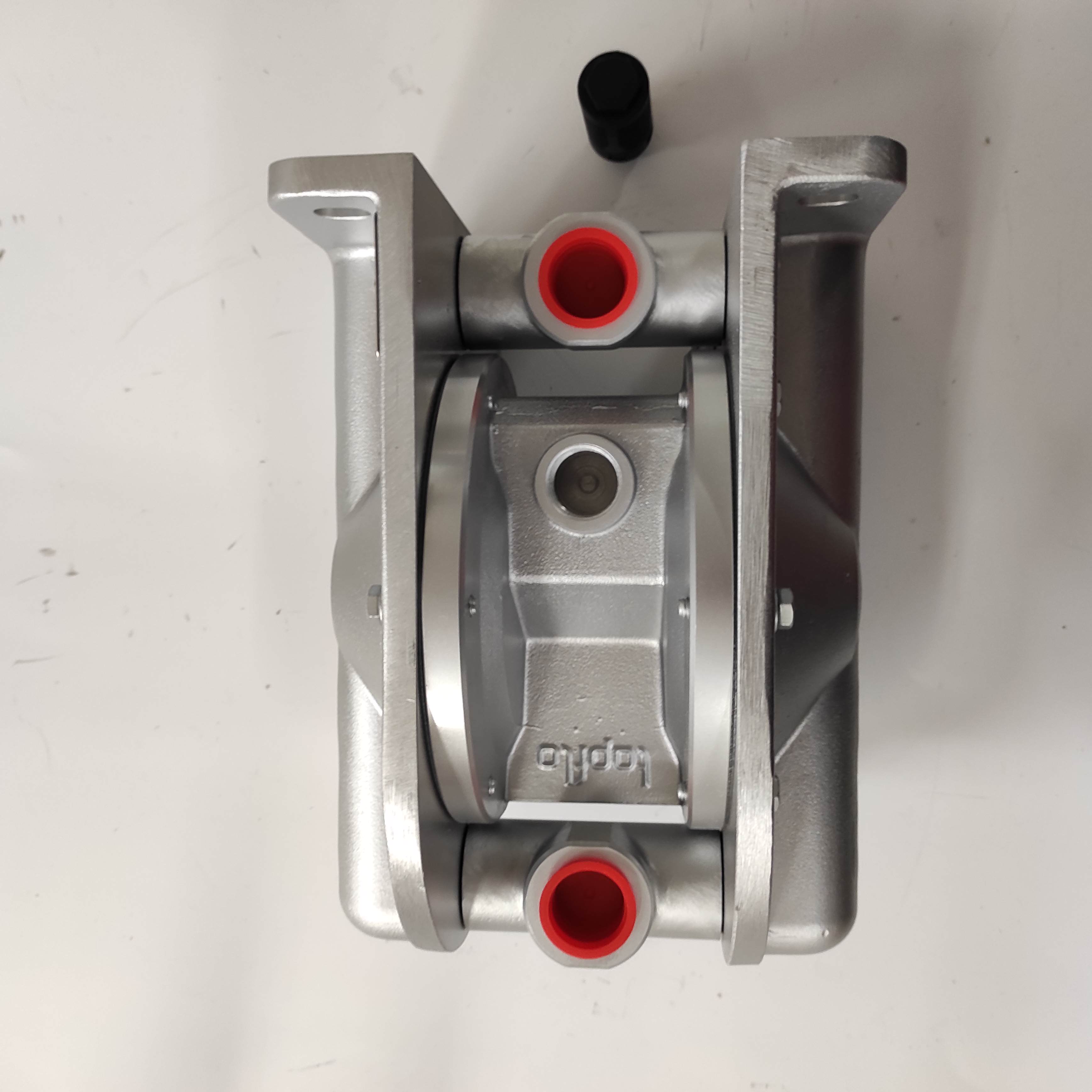

IMG_20241105_083555.jpg |
