| BRAND | Bonfiglioli |
| Product | C222P 2.7 P90 B3 - B1410008 |
| Description | Helical gearbox for implementation |
| Internal code | IMP4914195 |
| Weight | 8 |
| Custom code | 84834021 |
| Technical specification | Output shaft=25x50mm i=2.7 IEC installation Flange=200mm bore=24mm Installation position=B3 TRANSMISSION TYPE C GEARBOX SIZE 22 - Mn2=200nm/TN2=1770lbin REDUCTION LEVELS 2 TYPE P TRANSLATION 2.7 P90 DRIVE INDICATOR INSTALLATION POSITIONS B3 METRIC measurement technology n1 input speed [min-1] 1400 Pn1 nominal input power [kW] 4.5 Rn1 eing.Allows.querk. [N] N/A n2 output speed. [min-1] 514 Mn2 output nominal speed [Nm] 80 Rn2 from.The allows.querk. [N] 1460 Get.Mom.Traeg. (•10-4) [Kgm2] 5.1 ±d Dynamic efficiency [%] 95 Gear weight [kg] 8.0 Output dimension Ø25 h6 x 50 mm Oil volume [l] 0.780 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Bonfiglioli - C222P 2.7 P90 B3 - B1410008 Helical gearbox for implementation number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

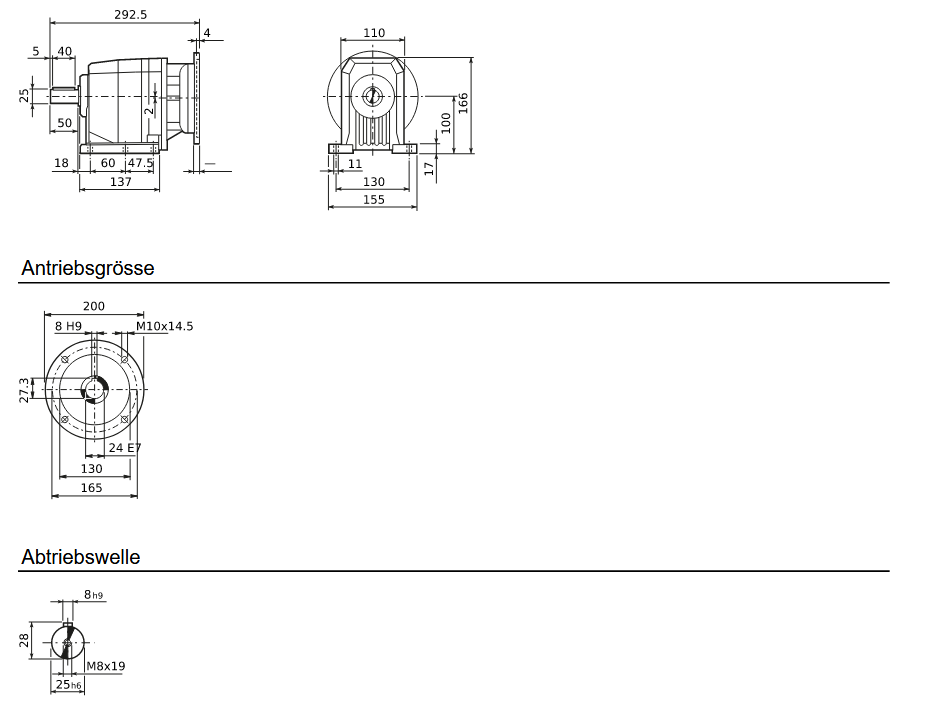

Capture.PNG |
