| BRAND | AC Motoren |
| Product | ACA 100 Lb-4 / PHE OEM |
| Description | AC three-phase motor |
| Internal code | IMP4067164 |
| Weight | 31 |
| Custom code | 85015220 |
| Technical specification | Motor power: 2.20 KW / 50 Hz 2.64 KW / 60 HZ Number of motor poles: 4 Motor voltage: 3 x 230/400 V + - 10%, 50 Hz 3 x 265/460 V + - 10%, 60 Hz Motor speed: 1440 min-1/50 Hz 1728 min-1/60 Hz Efficiency class: IE3 Protection class: IP 55 Insulation class: H, 80C ° with hot storage grease, Metal KV, metal LF Weight: approx. 25.4 kg Design: foot design IM B3 Motor shaft: 28 m6 x 60 mm Terminal box position: above Coolant temperature: -20 to +40 ° C Installation altitude: <1000 m a. NN Color: RAL 7030 stone gray aluminum casing Additional equipment: without suitable for frequency control |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for AC Motoren - ACA 100 Lb-4 / PHE OEM AC three-phase motor number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

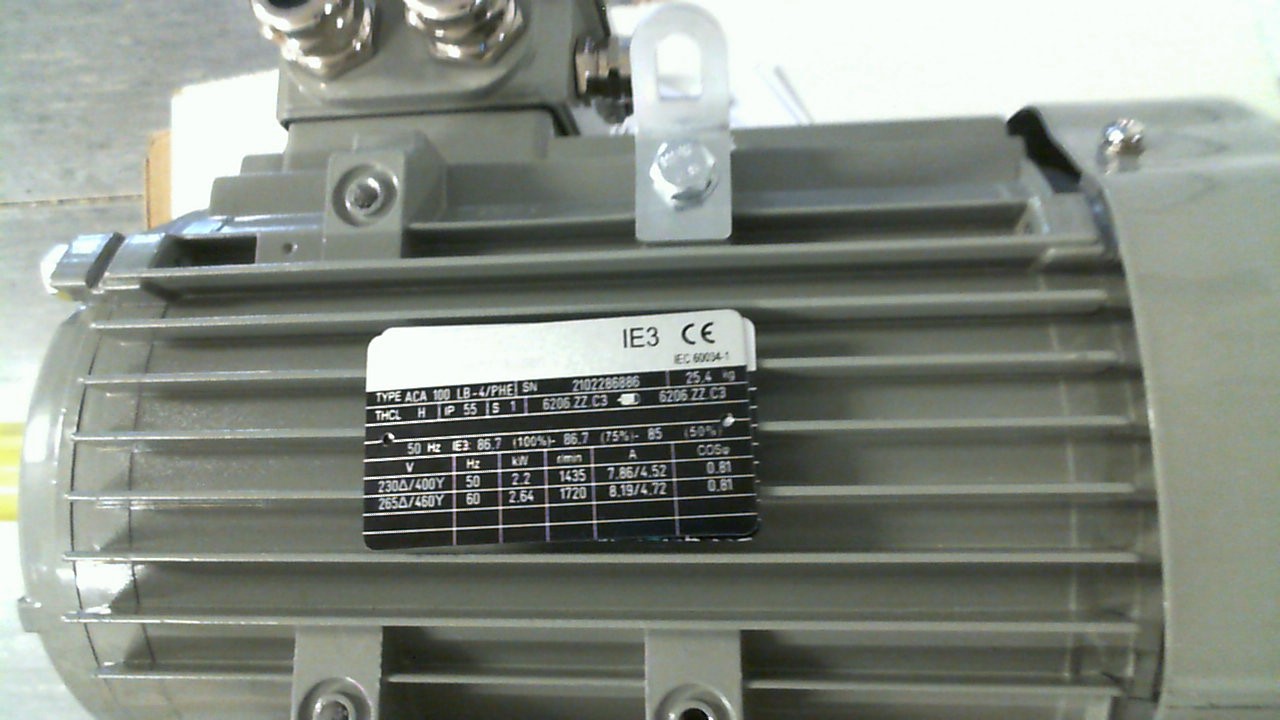

WIN_20210726_10_42_08_Pro.jpg | |
|
|

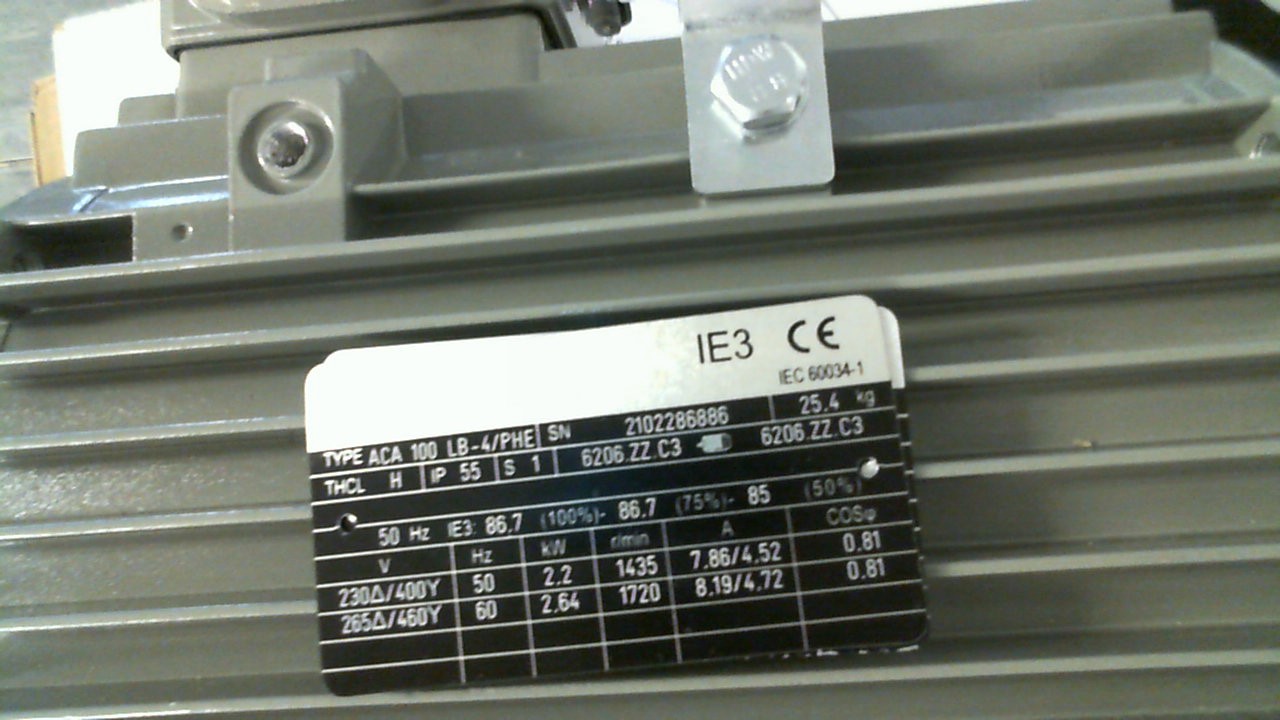

WIN_20210726_10_42_11_Pro.jpg |
