| BRAND | Calectro |
| Product | UG-5-AFR-24V-ST2 |
| Description | air duct smoke switch 24 V AC/DC |
| Internal code | IMP4622222 |
| Weight | 2 |
| Custom code | 85311030 |

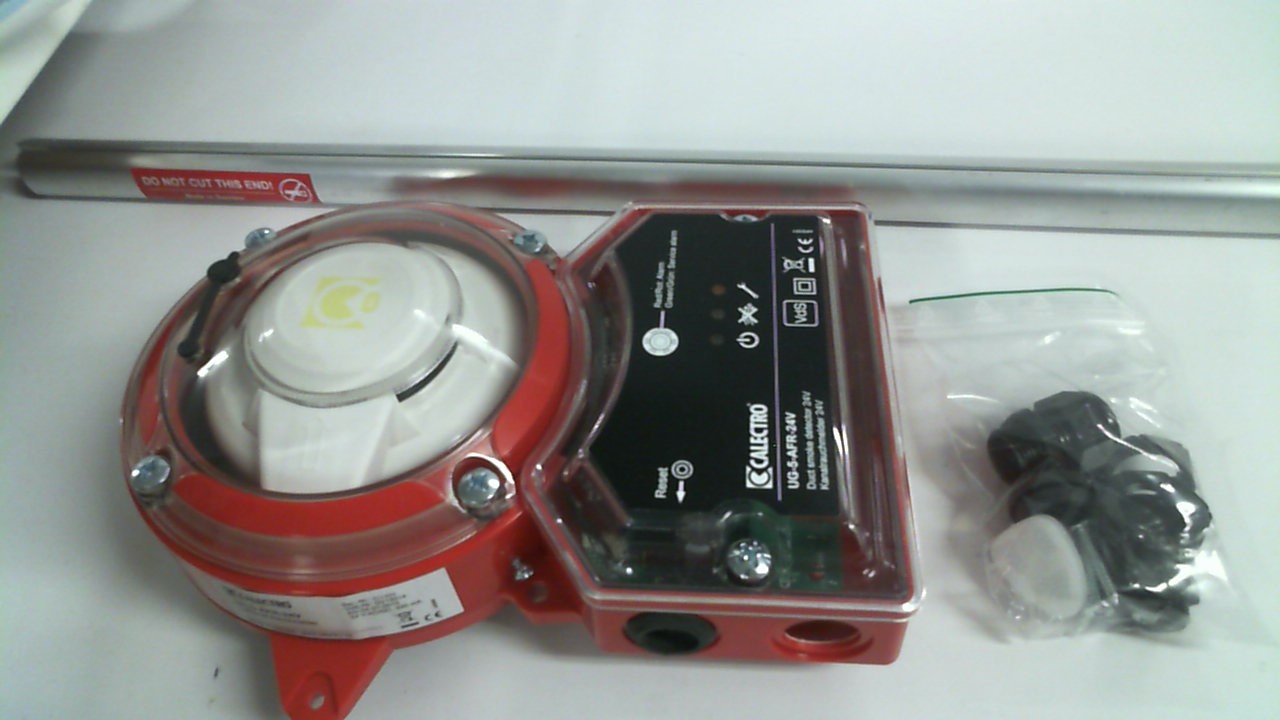

| Technical specification | Calectro duct smoke detector 24 V AC/DC The Calectro duct smoke detector was developed and combined to detect smoke in ventilation ducts a smoke detector with an adapter system, with pipe and housing specifically for optimal airflow were constructed by the smoke detector. The UG-5 can be used on either side of the channel in four different Positions are installed: 0°, 90°, 180° and 270°. Patented. Complete delivery with air duct removal pipe, 0.6 m long. power supply: 24 V AC/DC -15%, +10% Smoke detector type: Optical UG-5-AFR-24V Max. power consumption: 220 mA Operating temperature: -10°C to +55°C Maximum humidity: 99% RH Air velocity range: 1 to 20 m/s Approvals: VdS G213014, CE, prEN-54-27 Smoke alarm release via remote reset Relay output: potential-free Smoke alarm relay: Two 250 V, 8A changeover contacts Service alarm: One 250 V, 5 A changeover contact System fault alarm: One 250 V, 5 A changeover contact Air speed alarm: One 250 V, 5 A changeover contact LED on smoke detector: Green: service alarm (contamination) red - smoke alarm LED on circuit board: Green: normal mode Yellow - system error Yellow - air speed alert Adapter housing: ABS Protection class: IP54 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Calectro - UG-5-AFR-24V-ST2 air duct smoke switch 24 V AC/DC number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
WIN_20220729_13_38_58_Pro.jpg |
