| BRAND | Baratti |
| Product | V2-KR Var.0102 |
| Internal code | IMP3285796 |
| Weight | 1 |
| Technical specification | ATMOS Roots blower vacuum - absolutely oil and wear-free compression - Labyrinth seal to the compressor room with relief bore - Air-cooled, V-belt drive with belt protection - two-stage exhaust silencer - including vacuum relief valve - Including fine paper filter on the suction side - including glycerine-filled Bourdon tube pressure gauge D = 63mm (-1 to 0 bar) General technical data: Suction volume: 50 to 420m3 / h (15 to 75Hz) Vacuum (permanent): 300mbar abs. Final vacuum (intermittent): 100mbar abs. Fan speed: 800 to 4500min -1 (15 to 75Hz) Vacuum relief valve size: 1 Fine filter on suction side Connection thread: R 2 1/2 "" Outside diameter of exhaust air spigot: 76.1mm Noise level (depending on speed / pressure): 74 db (A) dB (A) (according to free field measurement DIN 45635) For dimensions, see dimension sheet no .: 900087AA Suction volume: 228 m³ / min Max. Negative pressure: -450 mbar Safety valve set to :: -600 mbar Fan speed: 3270 rpm Engine: Special version: 11 kW, 400/690 V, 3270 rpm, 60 Hz, IP 55, ISO-Kl.F, IE3, 3x bimetal, star-delta starting, incl. UL approval KRS engine: SPA 132-2r, TL 2012, 42 KRS blower: SPA 150-2r, TL 2012, 40 V-belts: XPA 1300 (2 pieces) Serial no .: ------- PAINTING: ------- OIL FILLING: Castrol Alphasyn EP220 DOCUMENTATION: German / English via pdf.-file |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Baratti - V2-KR Var.0102 number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

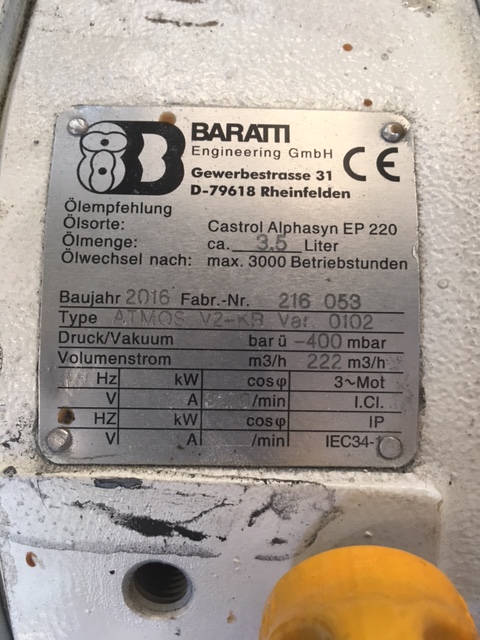

IMG_1362.jpg |
