| BRAND | Vega |
| Product | VEGACAP 62 CP62.XXAGSRKMX 300,000 mm |
| Description | Capacitive rod probe |
| Internal code | IMP4649645 |
| Weight | 2.75 |
| Custom code | 90318080 |
| Technical specification | Approval without Version / Process temperature Rod (ø12mm) 316L with PTFE insulation / -50...+150°C Process fitting / Material Thread G1½ PN64, DIN3852-A / Steel coated Electronics Relay (DPDT) 20 ... 72 V DC/20 ... 253 V AC (3A) Housing / Protection Plastic single chamber / IP66/IP67 Cable entry / Cable gland / Plug connection M20x1.5 / with / without Length (from seal surface) 300.000 mm Insulation length 72.000 mm Length screening tube 0.000 mm Bending ~~keine Bending L1 0.000 mm Bending L2 0.000 mm Customer Tag without Operating instructions DE - German Number of operating instructions 1 Additional equipment Without Additional cleaning procedure without Process pressure max. 64.0 Process pressure min. in bar -1 Cable length No choice Cable length 0.000 m Certificate / Standard Without Supply certificates no choice SIL qualification without Foodstuff/Pharmaceutical certificate without Approval directive / Scope None / World-wide Measuring unit for lengths Metre / Millimetre Device settings no Measuring range 3 (low sensitivity) (default value) Mode Overflow protection Switching delay in seconds 1 Suitable for tropical regions without Switching status display PLICS without Dye penetration test without Pressure test without Isolation resistance test without Low temperature test at -60 °C without Durability test more than 360 h without PMI test without |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Vega - VEGACAP 62 CP62.XXAGSRKMX 300,000 mm Capacitive rod probe number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|

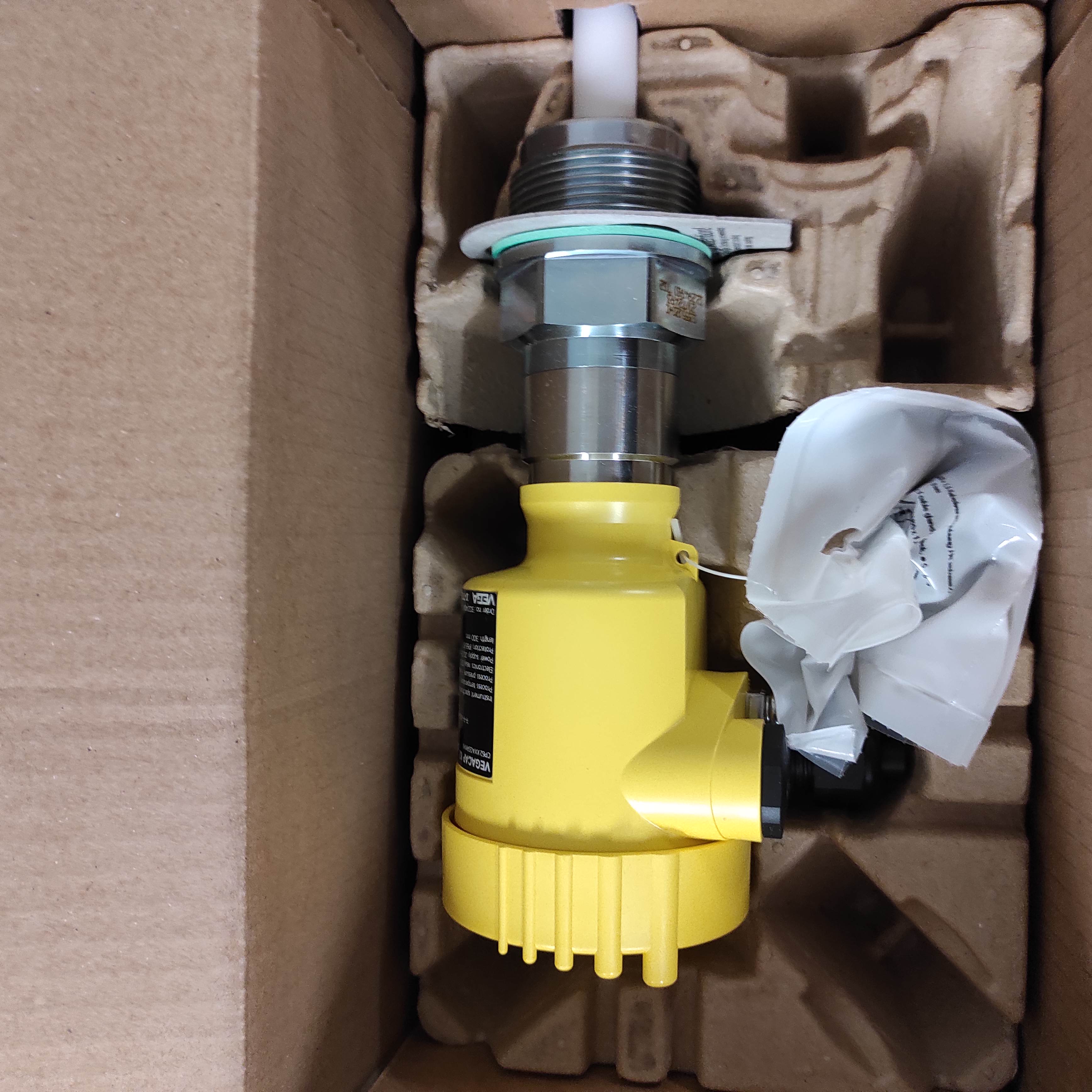

WIN_20220921_16_27_22_Pro.jpg | |
|
|

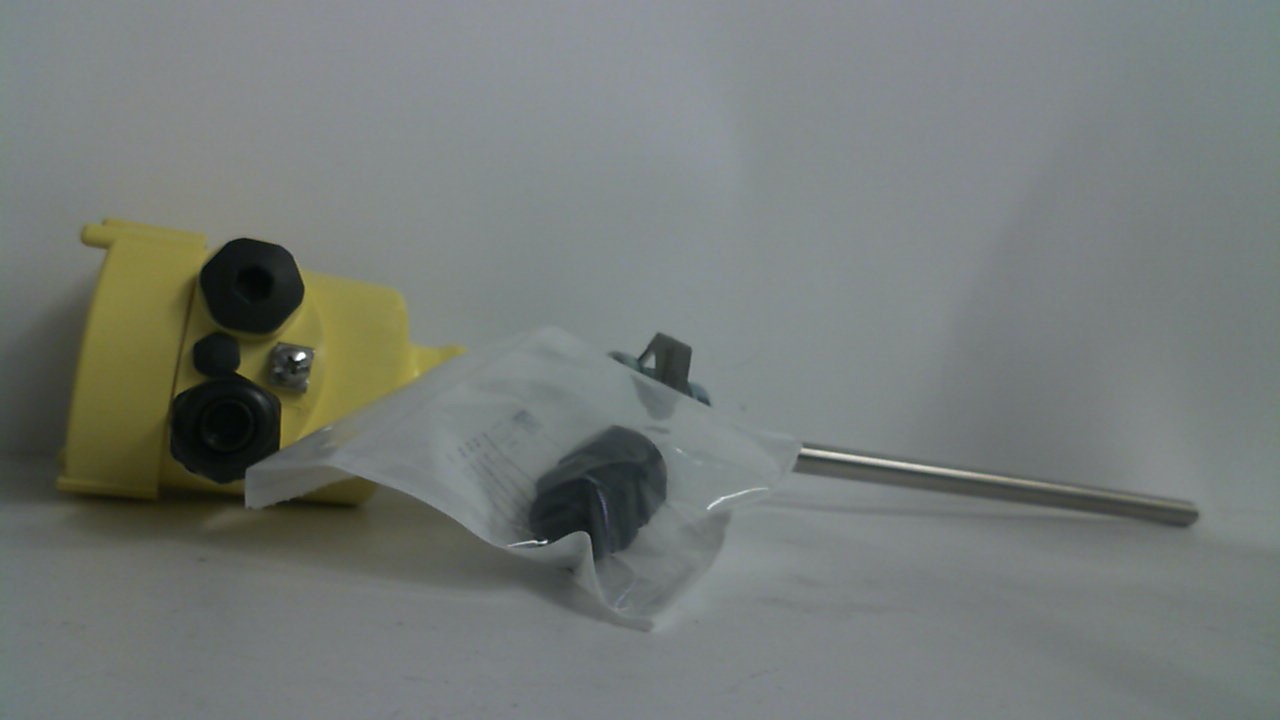

IMG_20221025_163553.jpg |
