BRAND | Vega |
Product | PSSR68.XXE1OFHAMAK (VEGAPULS SR 68) |
Description | Radar sensor for continuous level measurement of bulk solids |
Internal code | IMP569994 |
Weight | 4.9 |
Custom code | 90318080 |

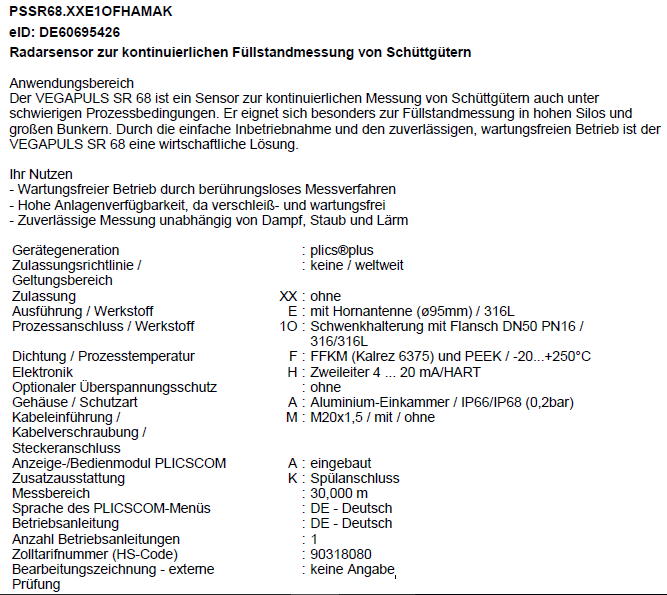

Technical specification | Device generation: plics® plus Permission policy/ Scope: none/worldwide Approval XX: none version/ material E: with horn antenna (ø95mm)/316L process connection/ material 1O: Swivel bracket with flange DN50 PN16/316/316L Gasket/process temperature F: FFKM (Kalrez 6375) and PEEK/-20... +250°C Electronics H: two-wire 4... 20 mA/hard Optional surge protection: none Enclosure/protection class A: aluminum single-chamber/ IP66/IP68 (0.2 bar) CABLE ENTRY/ CABLE GLAND/ male connector M: M20x1.5/with/ without PLICSCOM A display/control module: built-in Additional equipment K: flushing connection Measuring range: 30,000 m PLICSCOM menu language: DE - German Operating Instructions: DE - German Number of operating manuals: 4 Min. process pressure in bar: -1 Max. process pressure in bar: 1,000 |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Vega - PSSR68.XXE1OFHAMAK (VEGAPULS SR 68) Radar sensor for continuous level measurement of bulk solids number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
Capture.PNG |
