| BRAND | Vivoil Oleodinamica Vivolo |
| Product | X2I4302POOA |
| Description | Middle section external gear pump |
| Internal code | IMP4870683 |
| Weight | 2.3 |
| Custom code | 84136031 |

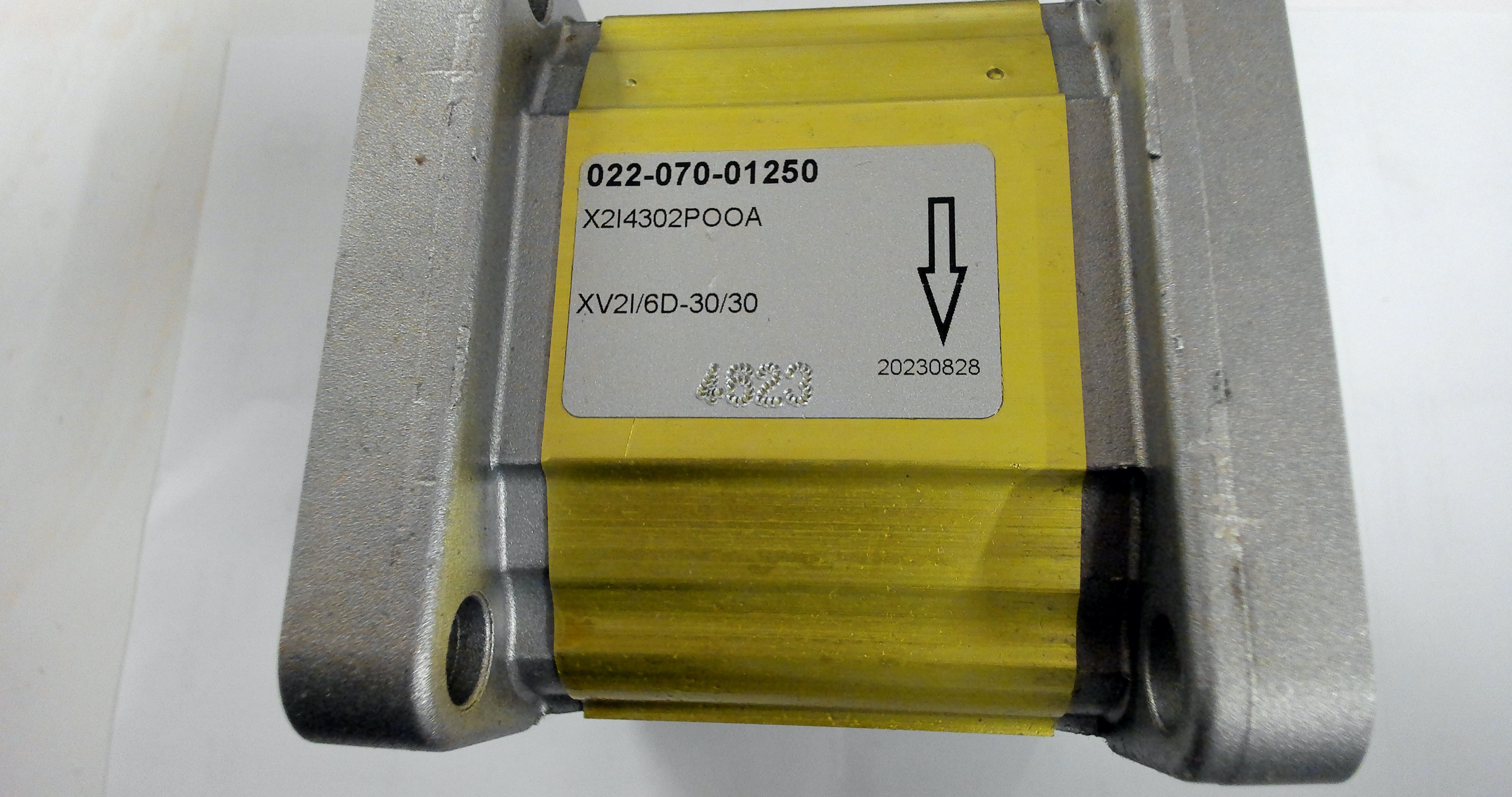

| Technical specification | 022-070-01250 XV2I/6D-30/30 6.0ccm/U - clockwise - 260 bar Middle section external gear pump size 2 with aluminum body and aluminum flanges Delivery volume: 6.0 ccm/U Direction of rotation: clockwise Mounting flange for pre-installed pump size 2: Fitting Ø 36.5 mm - 4 hole mounting 96.2 mm x 71.5 mm Mounting flange for middle or end section Size 2: Fitting Ø 36.5 mm - 4 hole mounting 96.2 mm x 71.5 mm Drive-through shaft: toothed on both sides 9 teeth DIN5482 - 17x14 - Ø 16.5 h11 Suction connection: LK 30 mm - M6 x 1 Pressure connection: LK 30 mm - M6 x 1 Installation length: 86.4 mm Seal material: NBR Permissible shaft torque: 86.2 Nm Continuous pressure limited by drive shaft: 260 bar Continuous pressure: 260 bar Peak pressure (max. 0.5 sec.): 300 bar Minimum speed: 700 rpm Maximum speed: 3500 rpm |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Vivoil Oleodinamica Vivolo - X2I4302POOA Middle section external gear pump number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
