| BRAND | Vivoil Oleodinamica Vivolo |
| Product | X2M5501ECCE |

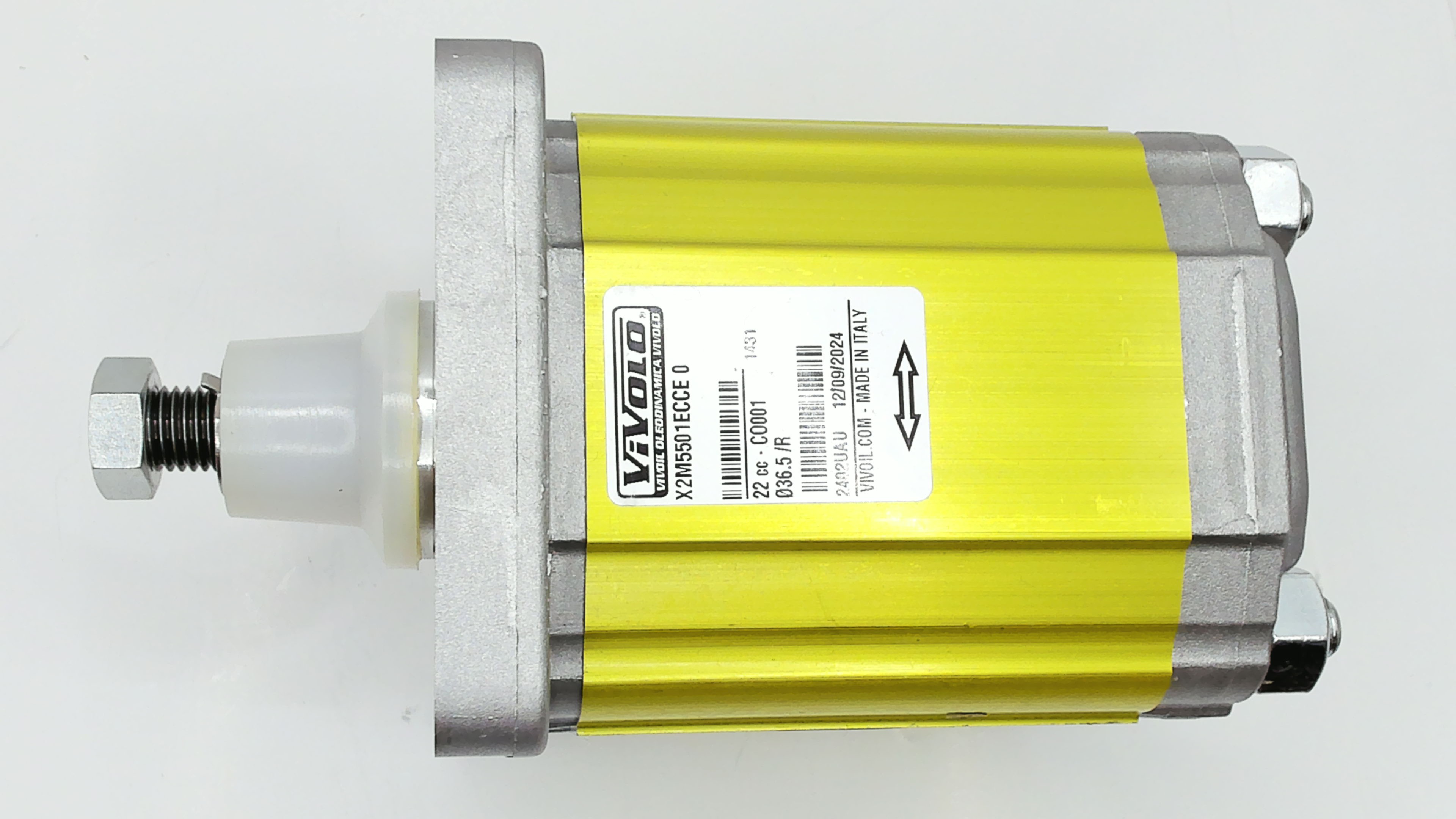

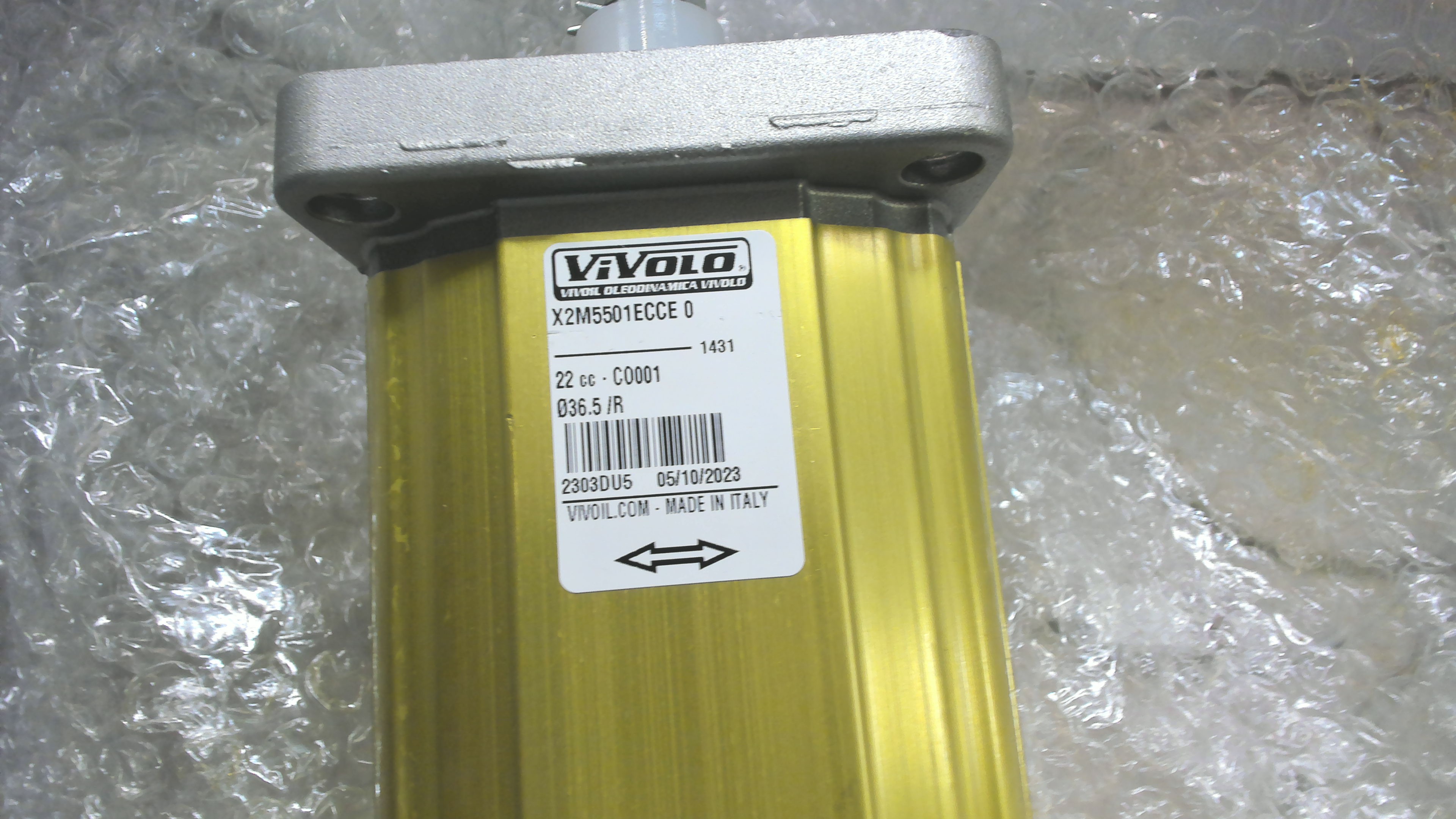

| Description | Reversible hydraulic motor |
| Internal code | IMP4838637 |
| Weight | 3.05 |
| Custom code | 84122981 |
| Technical specification | <p>016-130-01350</p><p>X2M5501ECCE<br>Xv2m/22-Ø36,5-co.001-3/4-3/4 leak oil external<br>22.8ccm/U - reversing - 200bar<br>Size 2 external gear motor with aluminum body and aluminum covers<br>flow rate: 22.8 ccm/U<br>Direction of rotation: reversing<br>Drainage: external<br>Mounting flange: Passport Ø 36.5 mm - 4 hole mounting 96.2 mm x 71.5 mm - Ø 9 mm<br>Drive shaft: conical 1:8 - disc spring 4 mm<br>Oil connections (IN/OUT): 2x G 3/4"<br>Leakage oil connection: G 1/4"<br>Installation length: 118.2 mm<br>Sealing material: NBR<br>Allowable shaft torque: 233.2 Nm<br>Continuous pressure: 200 bar<br>Peak pressure (max 0.5 sec.): 240 bar<br>Minimum speed: 700 rpm<br>Maximum speed: 3000 rpm<br></p> |
Please send us your request per e-mail, so we can send you our offer with competitive prices and delivery time for Vivoil Oleodinamica Vivolo - X2M5501ECCE Reversible hydraulic motor number or any other model you need. We can offer competitive price, and delivery time with wide products distribution network in United Kingdom Industrial products Market.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
|
|
